Parking Assist Control Module: Locations

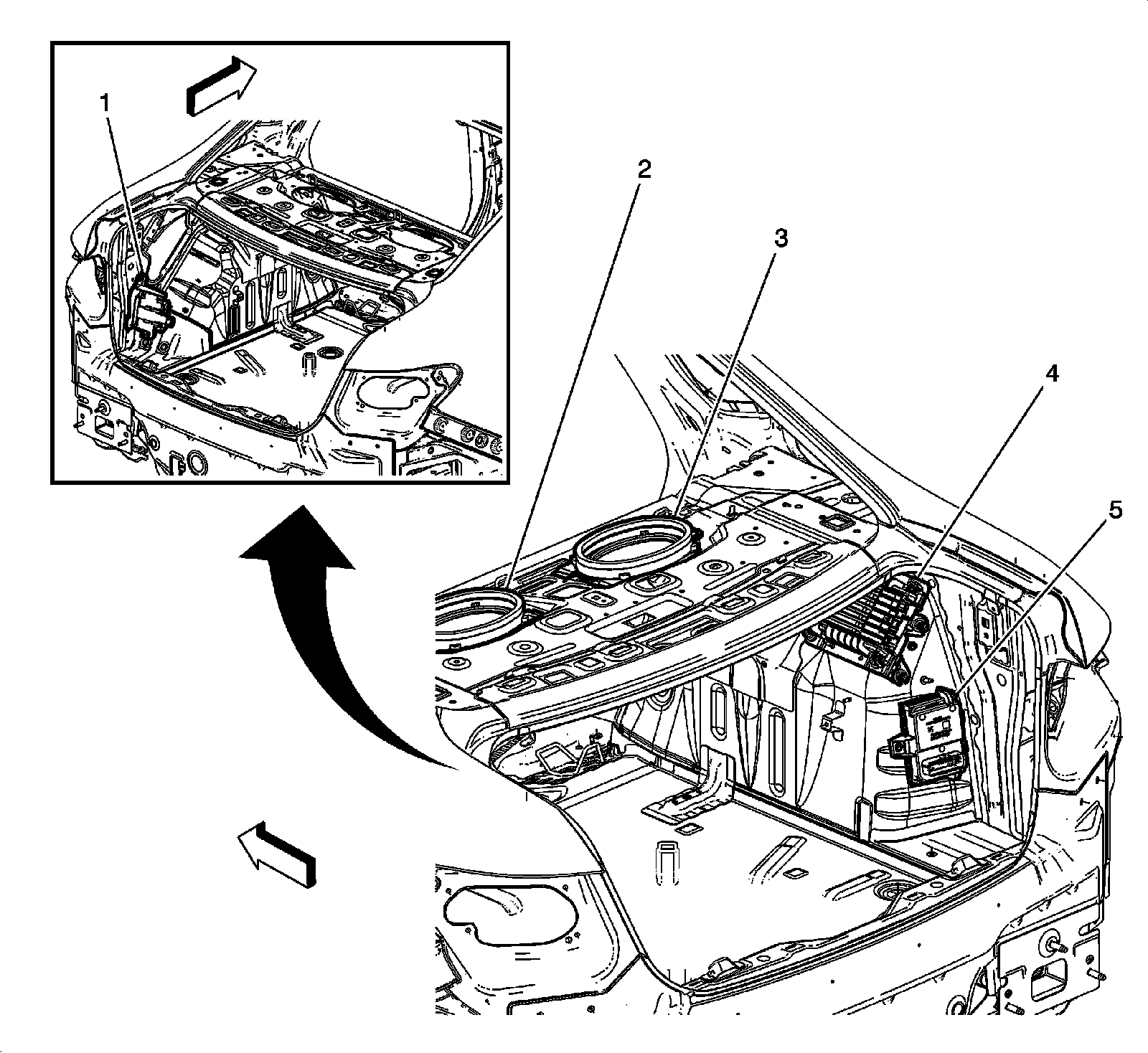

Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment Components





1 - K41R Rear Parking Assist Control Module

2 - P19N Speaker - Left Subwoofer

3 - P19AA Speaker - Right Subwoofer

4 - T3 Audio Amplifier

5 - K27 Fuel Pump Control Module
