Buick
>>
2013
>>
Verano L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block - Instrument Panel Wire Entry Fuses
Fuse Block - Instrument Panel Wire Entry Fuses
Electrical Center Identification Views

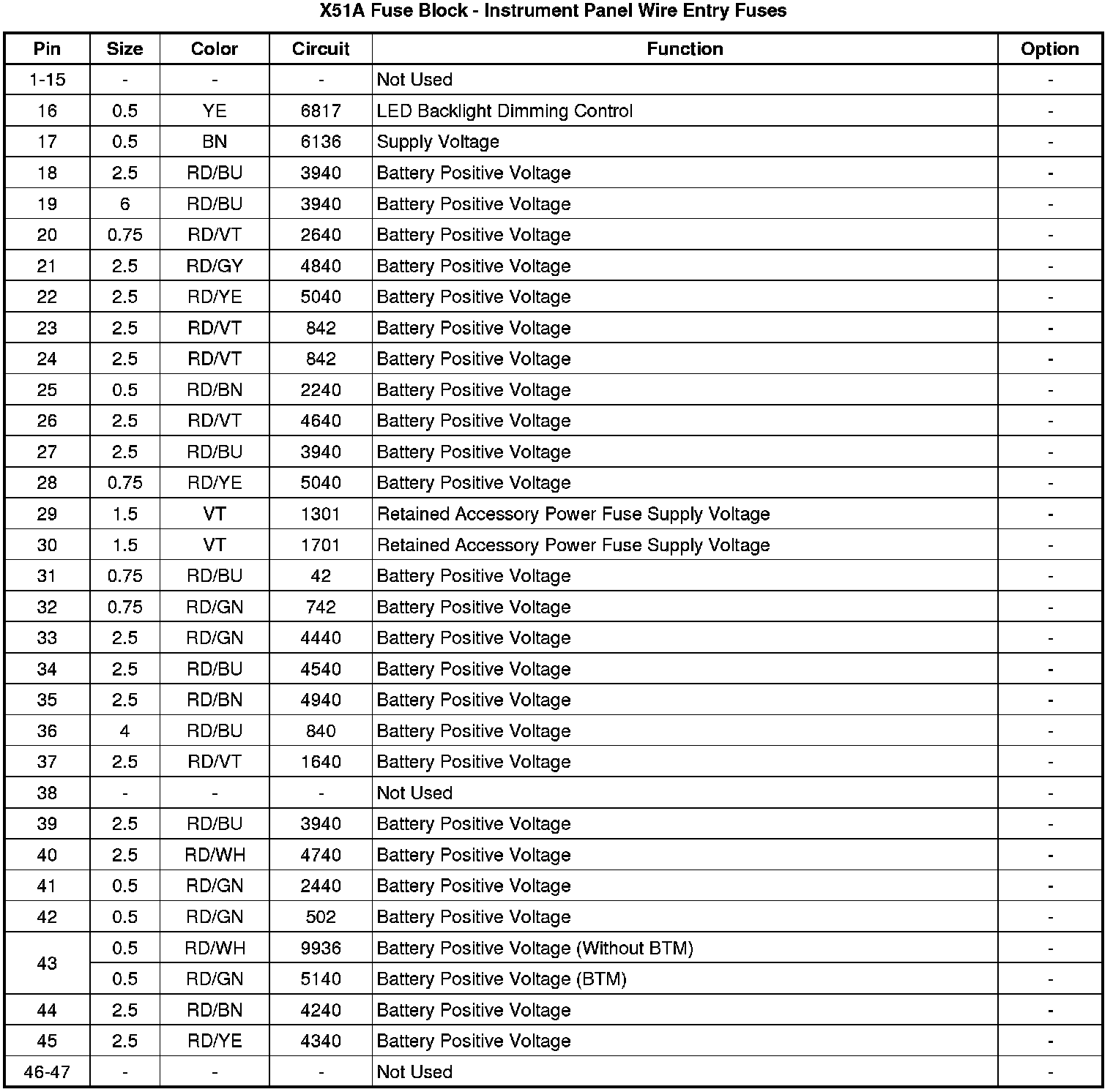

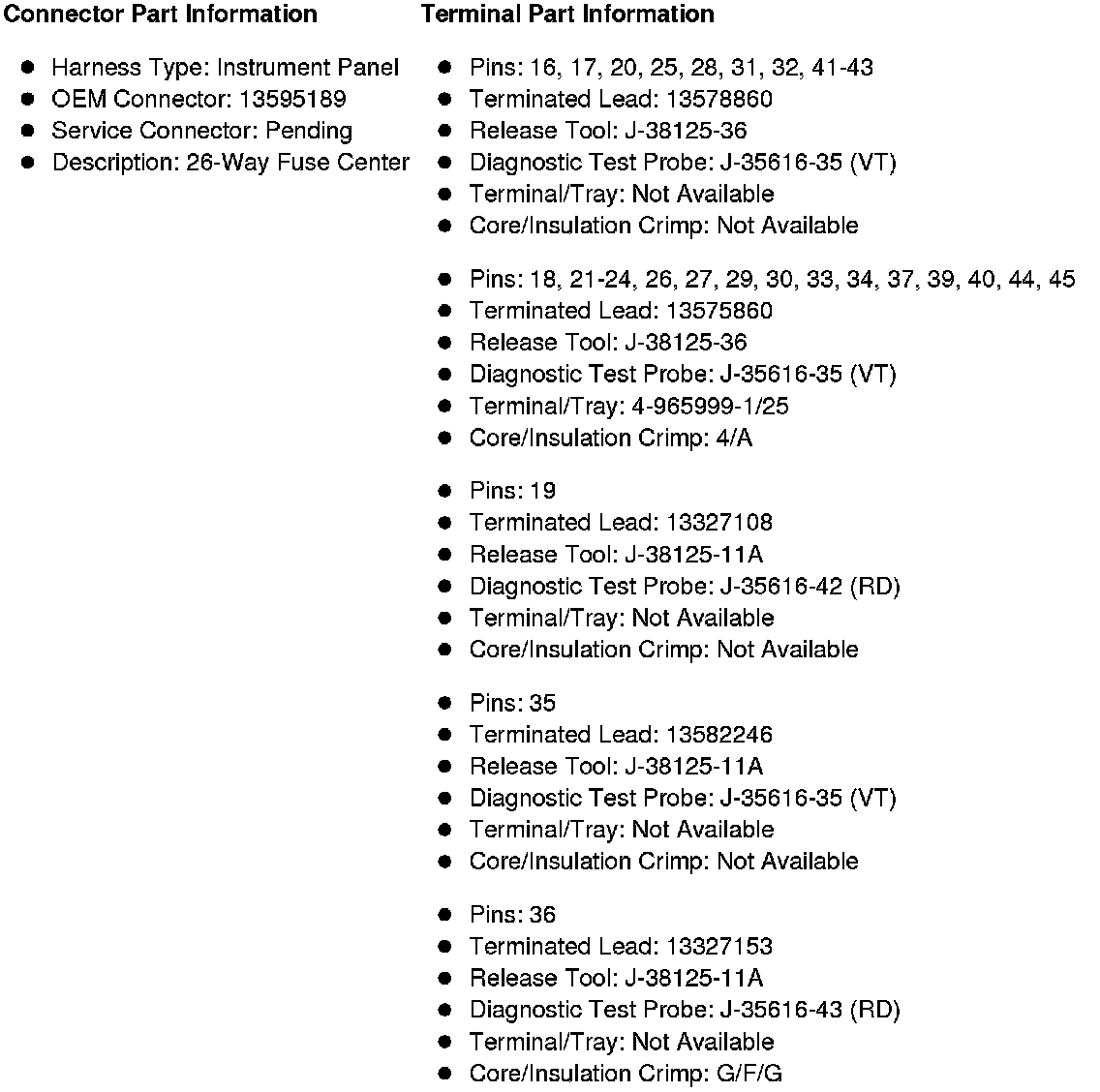

X51A Fuse Block - Instrument Panel Wire Entry Fuses
