Home >> Buick >> 2013 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wheel Speed Sensor >> Wheel Speed Sensor - Left Front (-F45/CZ2)

Wheel Speed Sensor - Left Front (-F45/CZ2)

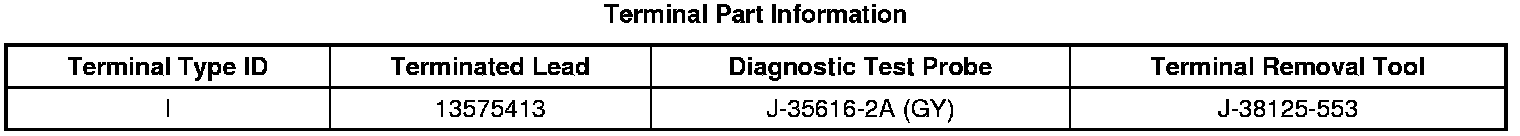

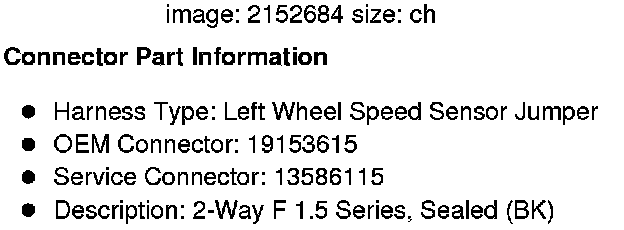

Component Connector End Views

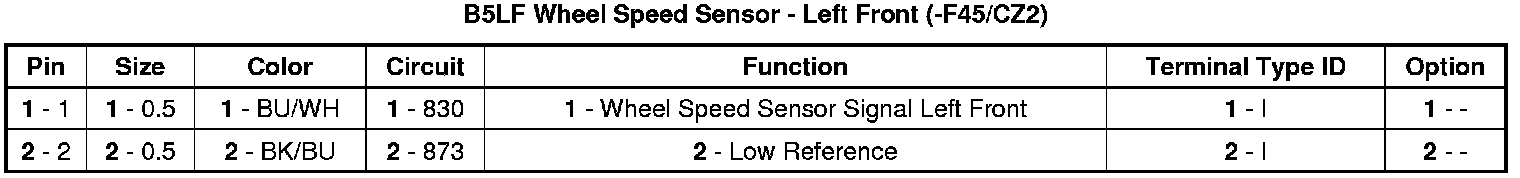

B5LF Wheel Speed Sensor - Left Front (-F45/CZ2)
