Fuel Rail Pressure Sensor
Fuel Rail Pressure Sensor

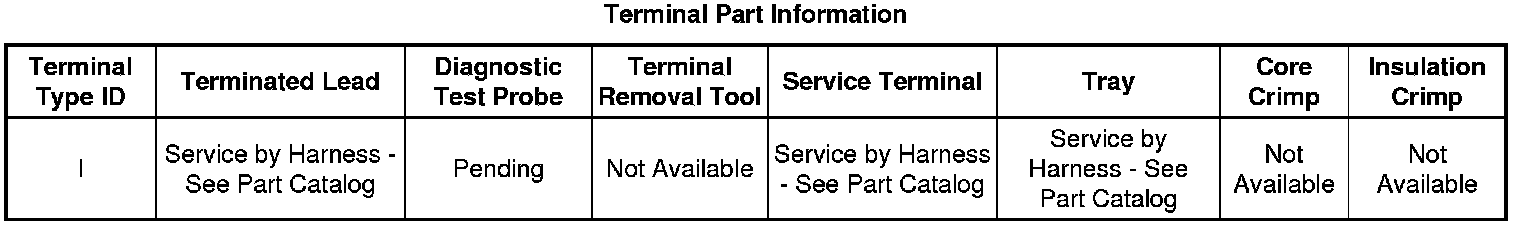

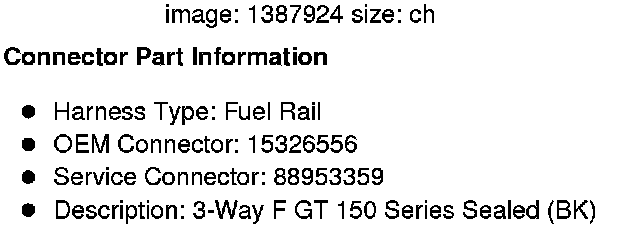

Component Connector End Views

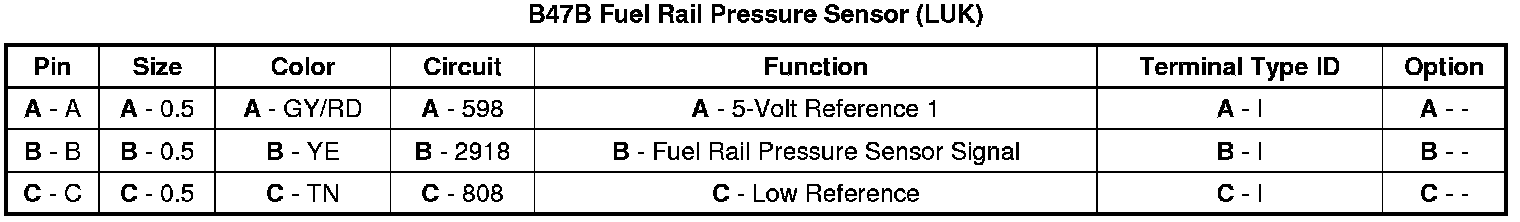

B47B Fuel Rail Pressure Sensor (LUK)
