Home
>>
Buick
>>
2013
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
>>
Backup Lamp Switch
Backup Lamp Switch

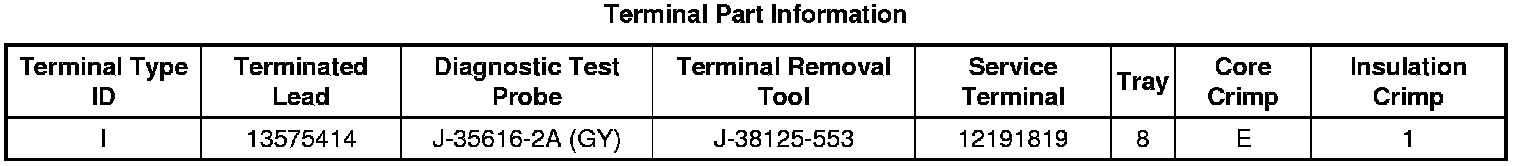

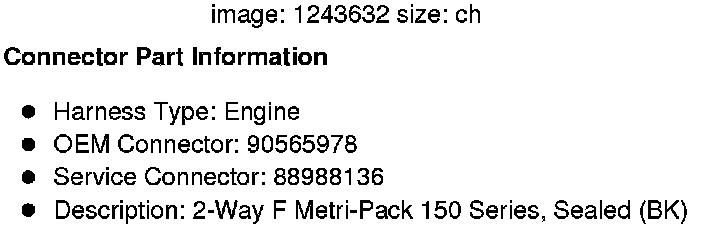

Component Connector End Views

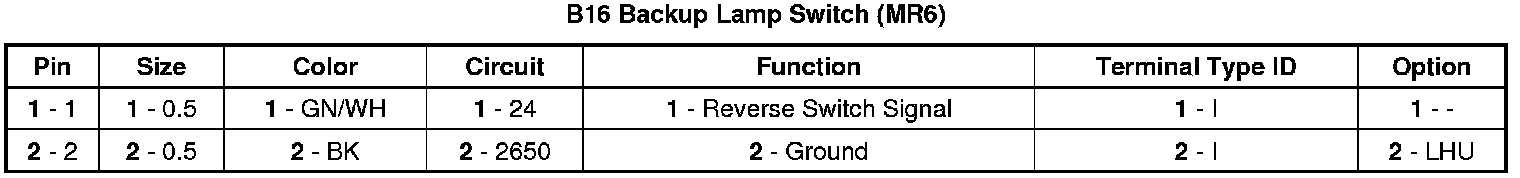

B16
Backup Lamp Switch
(MR6)
