Communications Control Module: Diagrams





Component Connector End Views

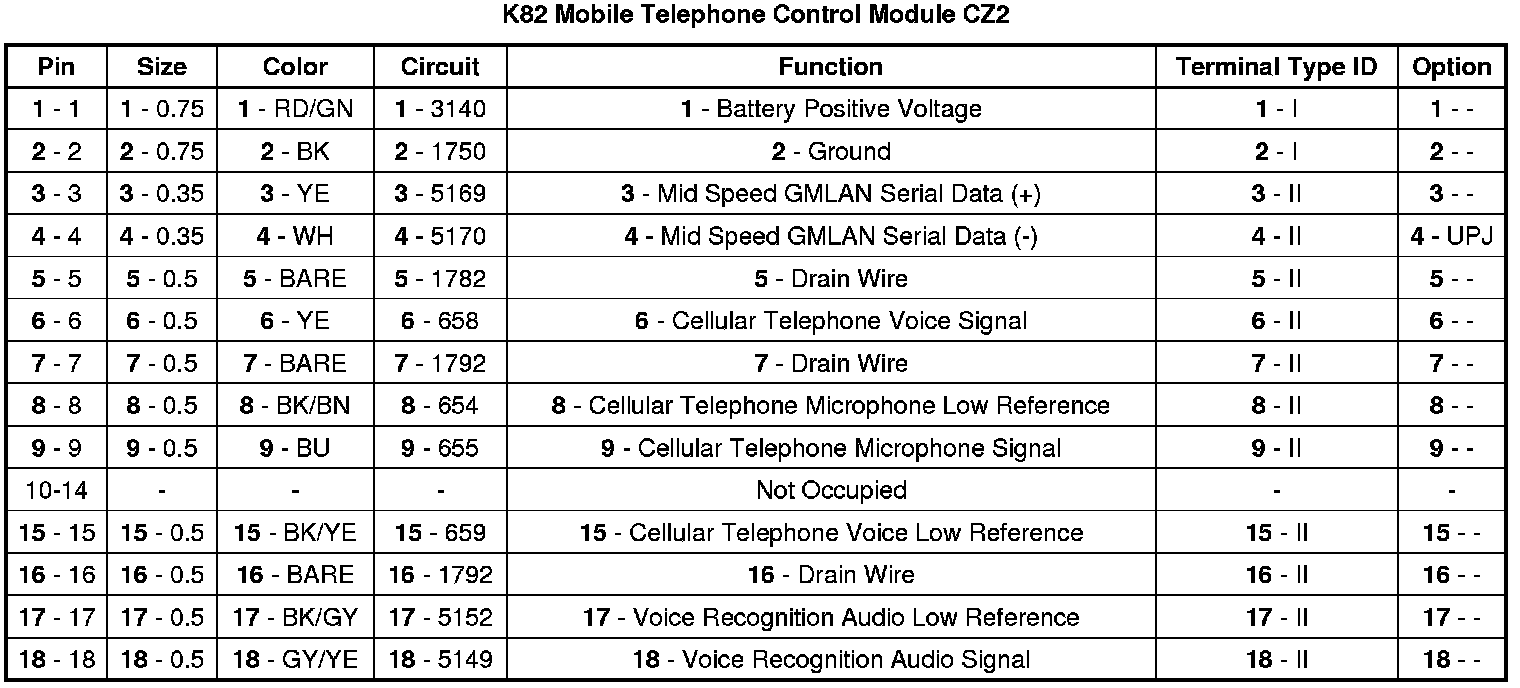

K82 Mobile Telephone Control Module CZ2
