Home >> Buick >> 2012 >> Verano L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows

Windows




Moveable Window Schematics

Driver





Passenger (AED)






Passenger (AEF)

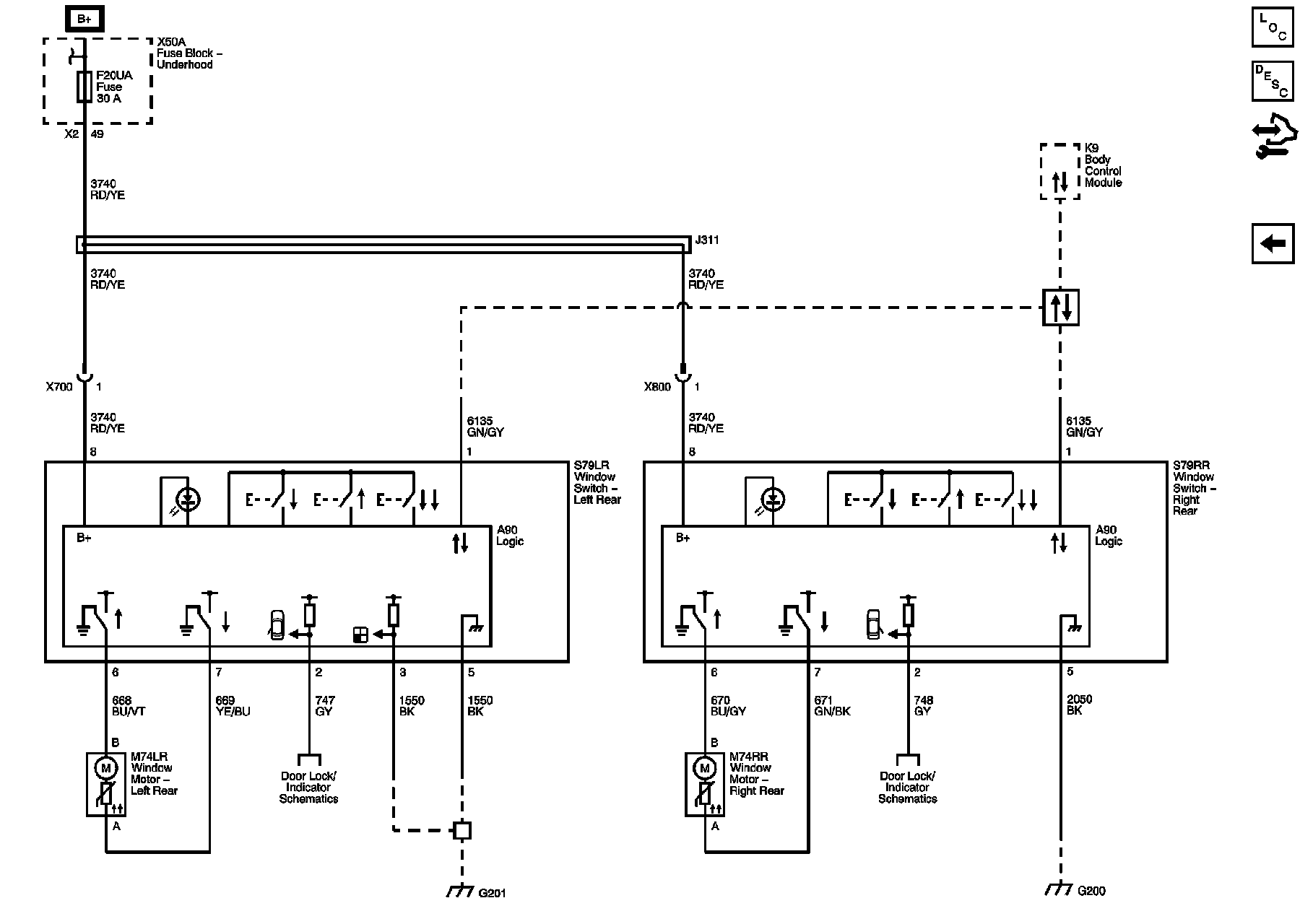

Rear Windows
