Air Cleaner Outlet Duct Replacement

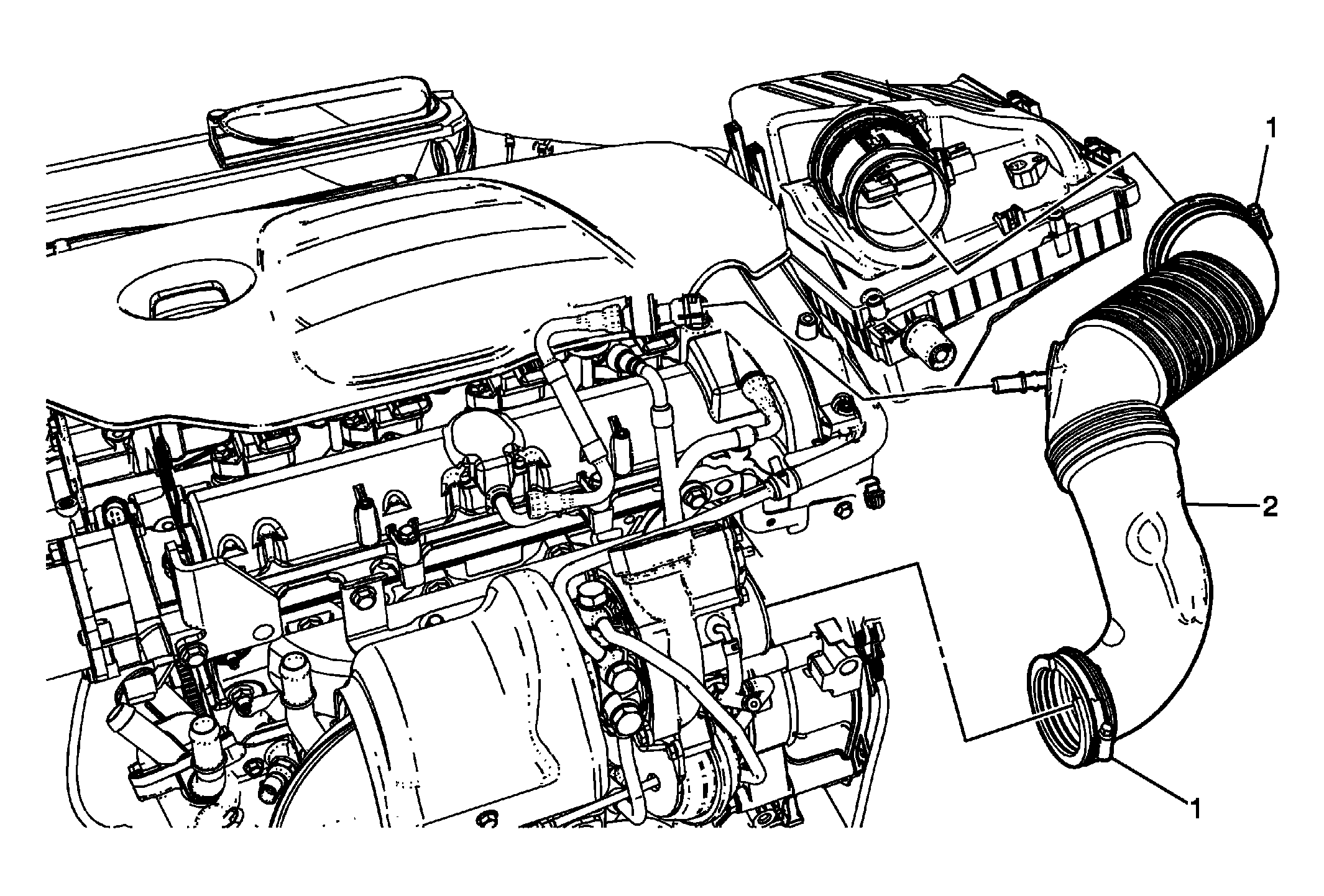

Fig 1: Air Cleaner Outlet Duct
GM2321828Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Duct Replacement

Callout Component Name
Preliminary Procedure
Disconnect the PCV connector. Refer to Plastic Collar Quick Connect Fitting Service .
1 Air Cleaner Outlet Duct Clamp
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Outlet Duct
