Home >> Buick >> 2012 >> Regal L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Battery Current Sensor >> Locations >> G103, G106, and G110

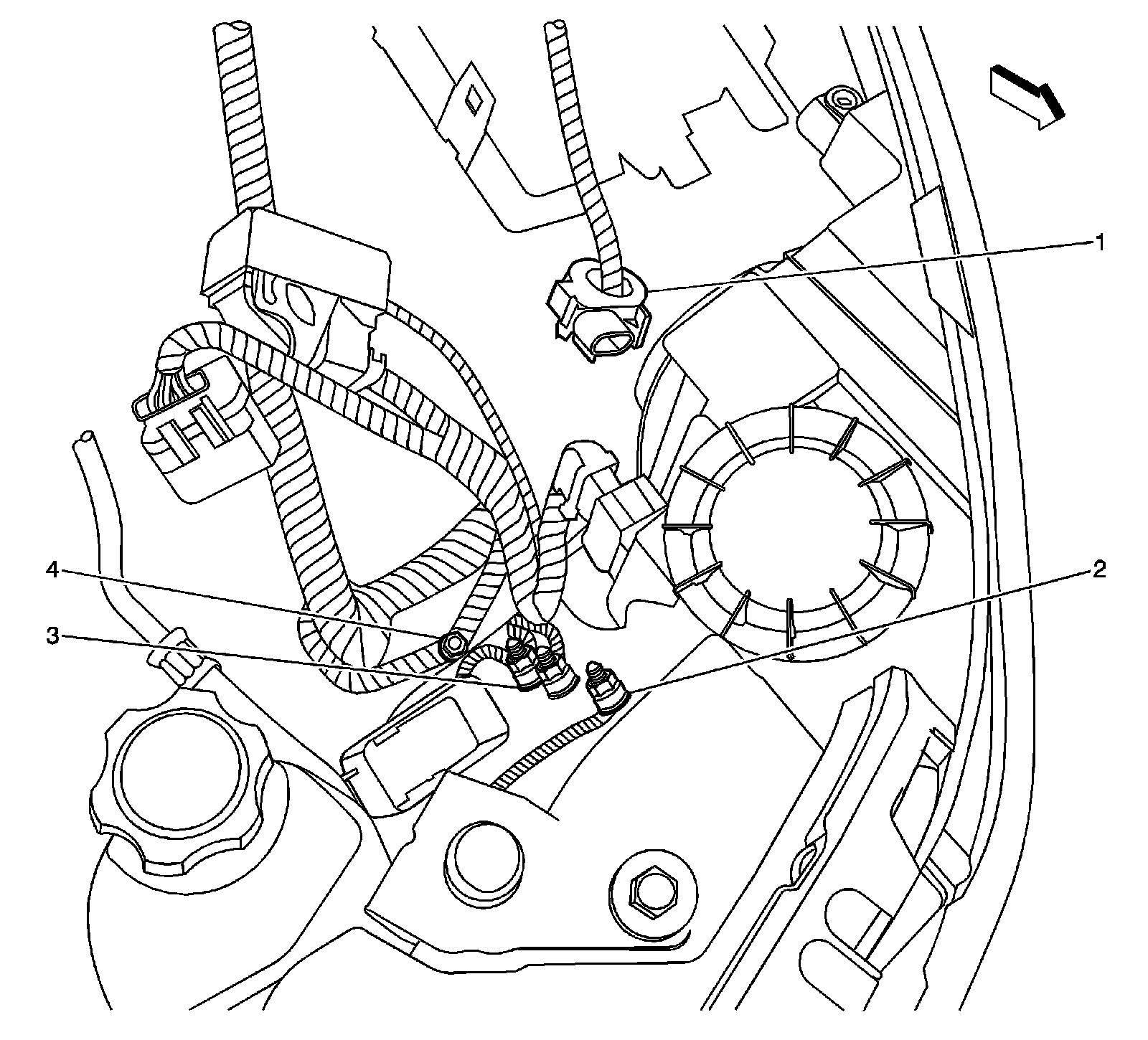

G103, G106, and G110




Ground Views

G103, G106, and G110





1 - B18 Battery Current Sensor

2 - G106

3 - G110

4 - G103
