Air Bag Control Module
>>
Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)
Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)
Component Connector End Views

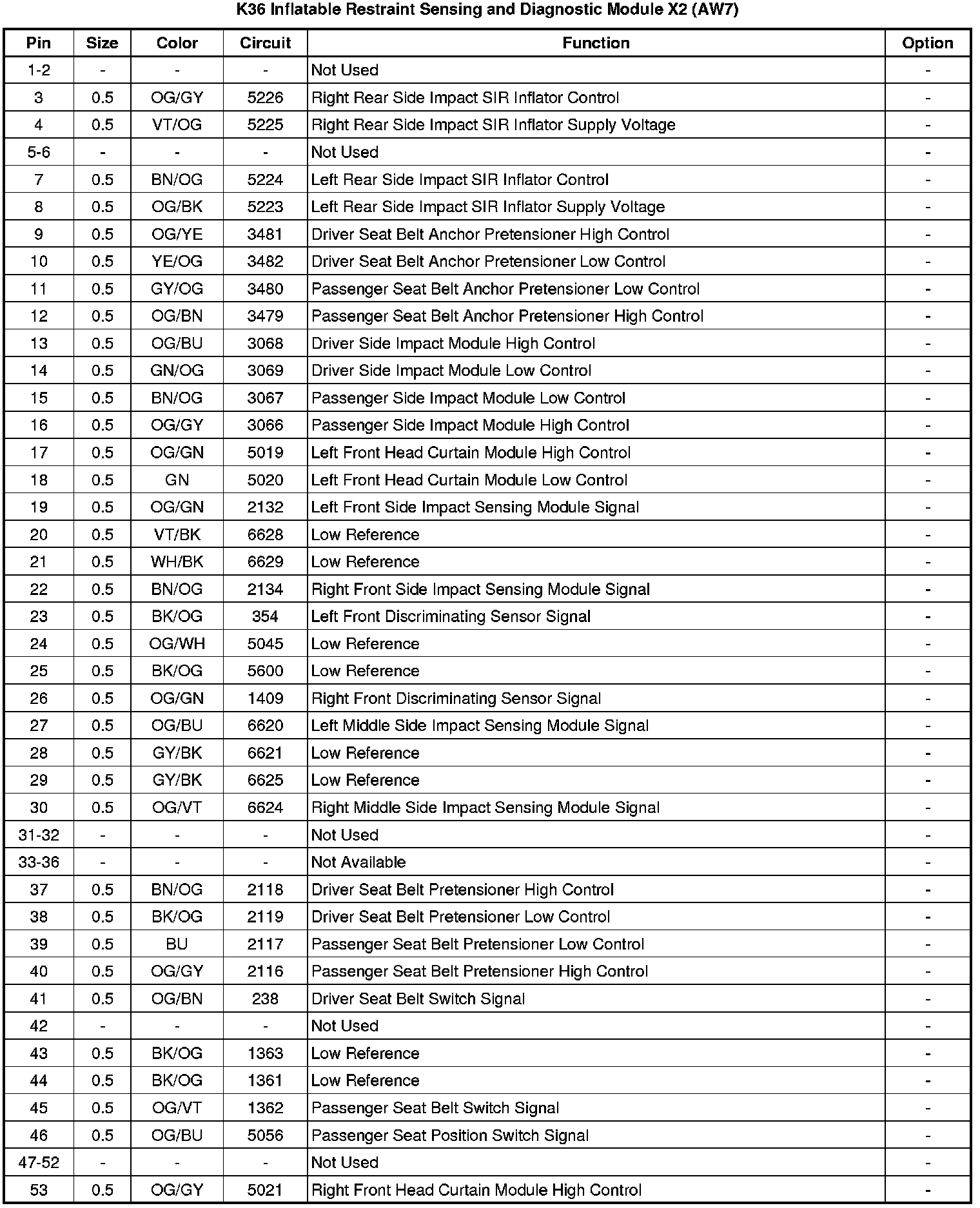

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)
