Home >> Buick >> 2012 >> Regal L4-2.0L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Diagrams >> With RPO LHU

With RPO LHU

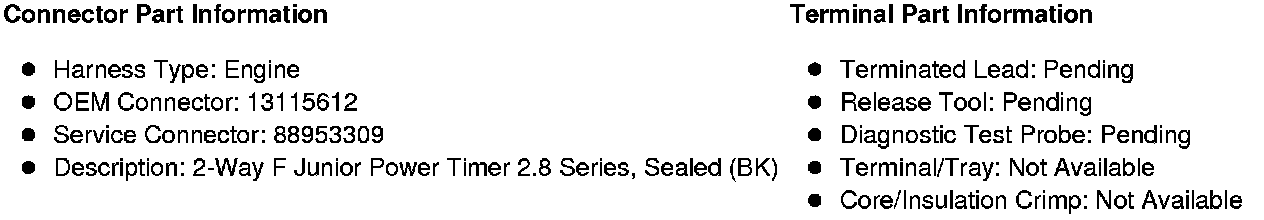

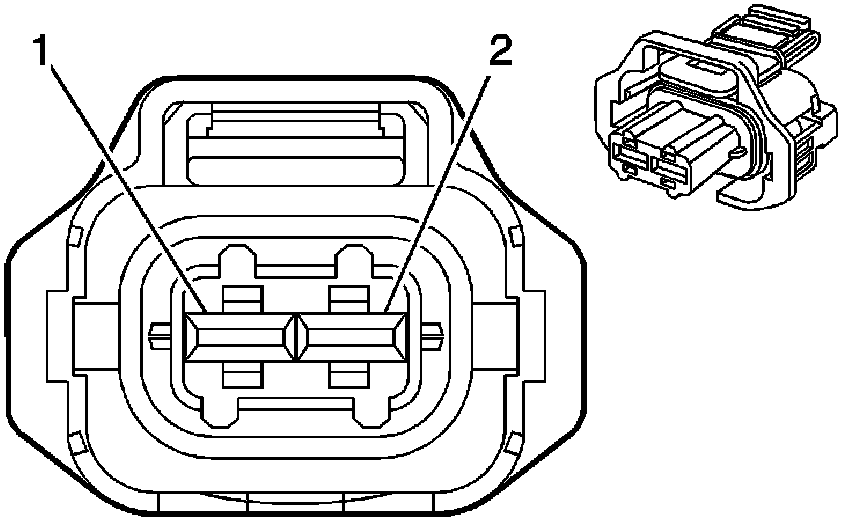

Component Connector End Views

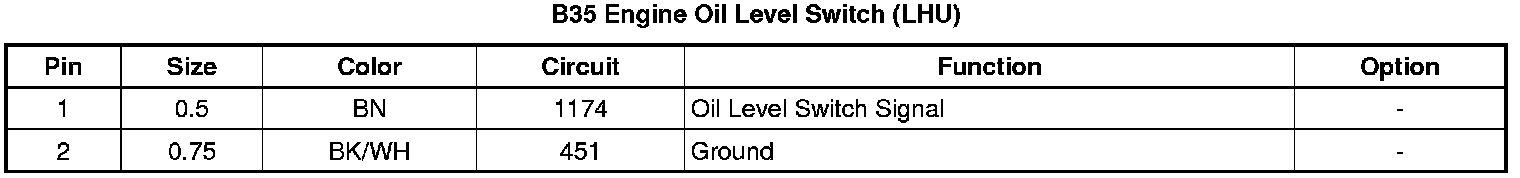

B35 Engine Oil Level Switch (LHU)
