Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

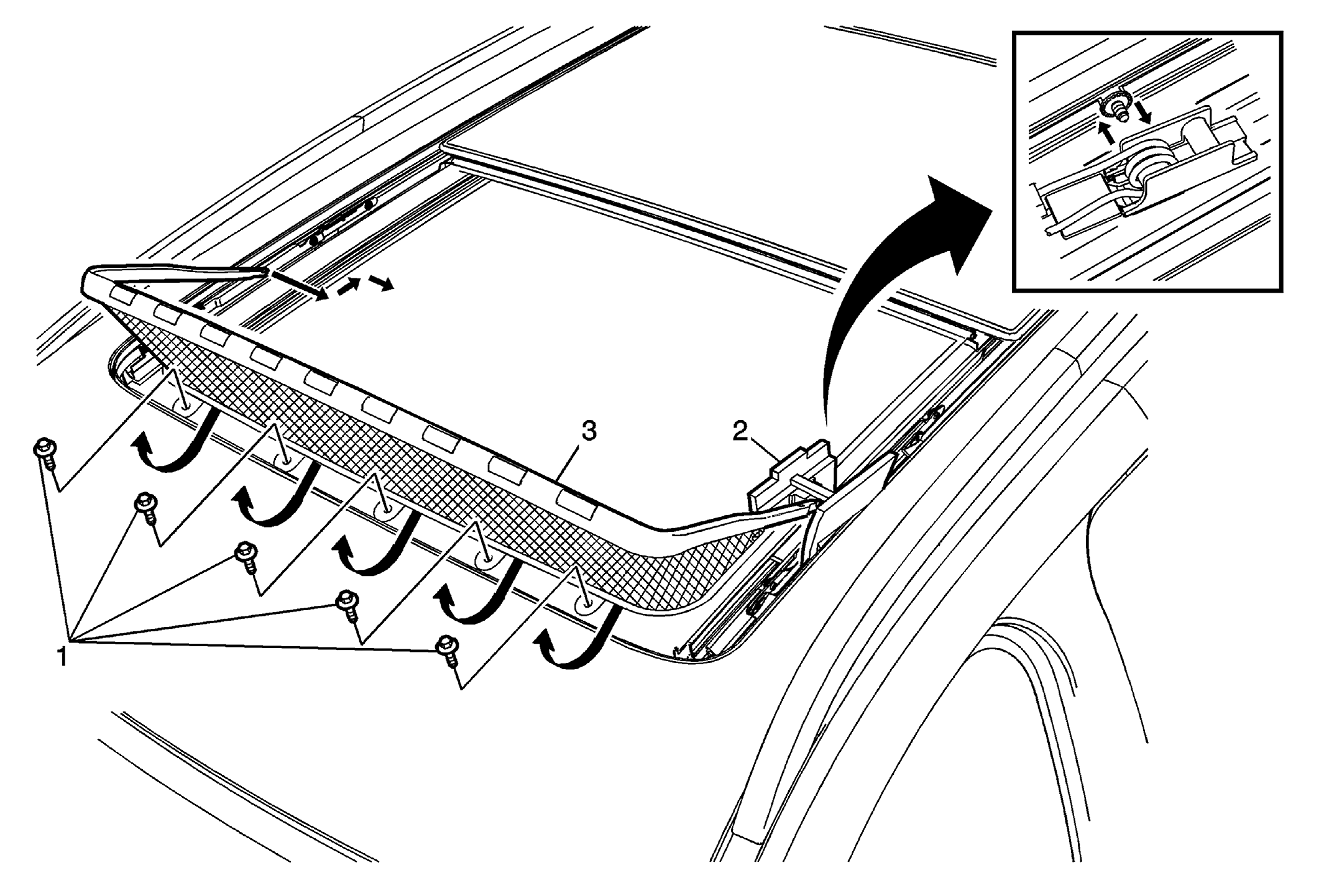

Fig 1: Sunroof Air Deflector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Deflector Fastener (Qty: 5) CAUTION: Refer to Fastener Caution Procedure Open the front sunroof window. Push down on the front of the deflector to expose the fasteners. Tighten: 4 N.m (35 lb in)
2	Sunroof Deflector Rear Bracket (Qty: 2) Procedure: Push down on the deflector arms located on left and right sides of the sunroof. Using a suitable tool, release the deflector brackets from the pins.
3	Sunroof Deflector Tip: Install the deflector brackets to the pins on each sides first. Then install the front part of the deflector fasteners

Callout

Component Name

Sunroof Deflector Fastener (Qty: 5)

CAUTION: Refer to Fastener Caution

Procedure

Open the front sunroof window.
Push down on the front of the deflector to expose the fasteners.

Tighten: 4 N.m (35 lb in)

Sunroof Deflector Rear Bracket (Qty: 2)
Procedure:
Push down on the deflector arms located on left and right sides of the sunroof. Using a suitable tool, release the deflector brackets from the pins.

Sunroof Deflector
Tip: Install the deflector brackets to the pins on each sides first. Then install the front part of the deflector fasteners
