Keyless Entry Transmitter

Remote Function Schematics

Module Power, Ground, Data Communication, and Controls

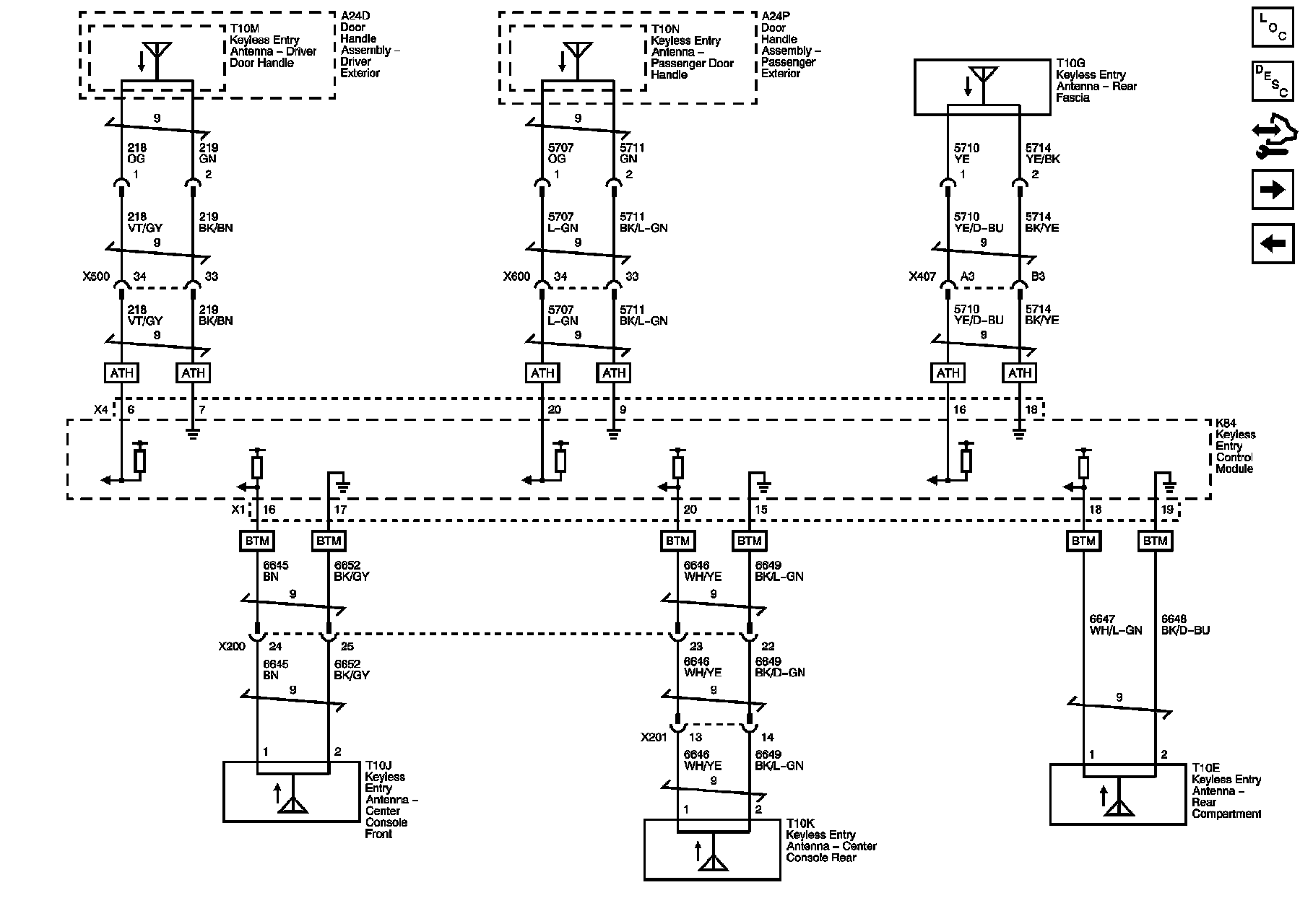

Passive Entry, Passive Start Antenna

Garage Door Opener
