Home >> Buick >> 2012 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Window Shade >> Rear Window Sunshade Module (DB3)

Rear Window Sunshade Module (DB3)

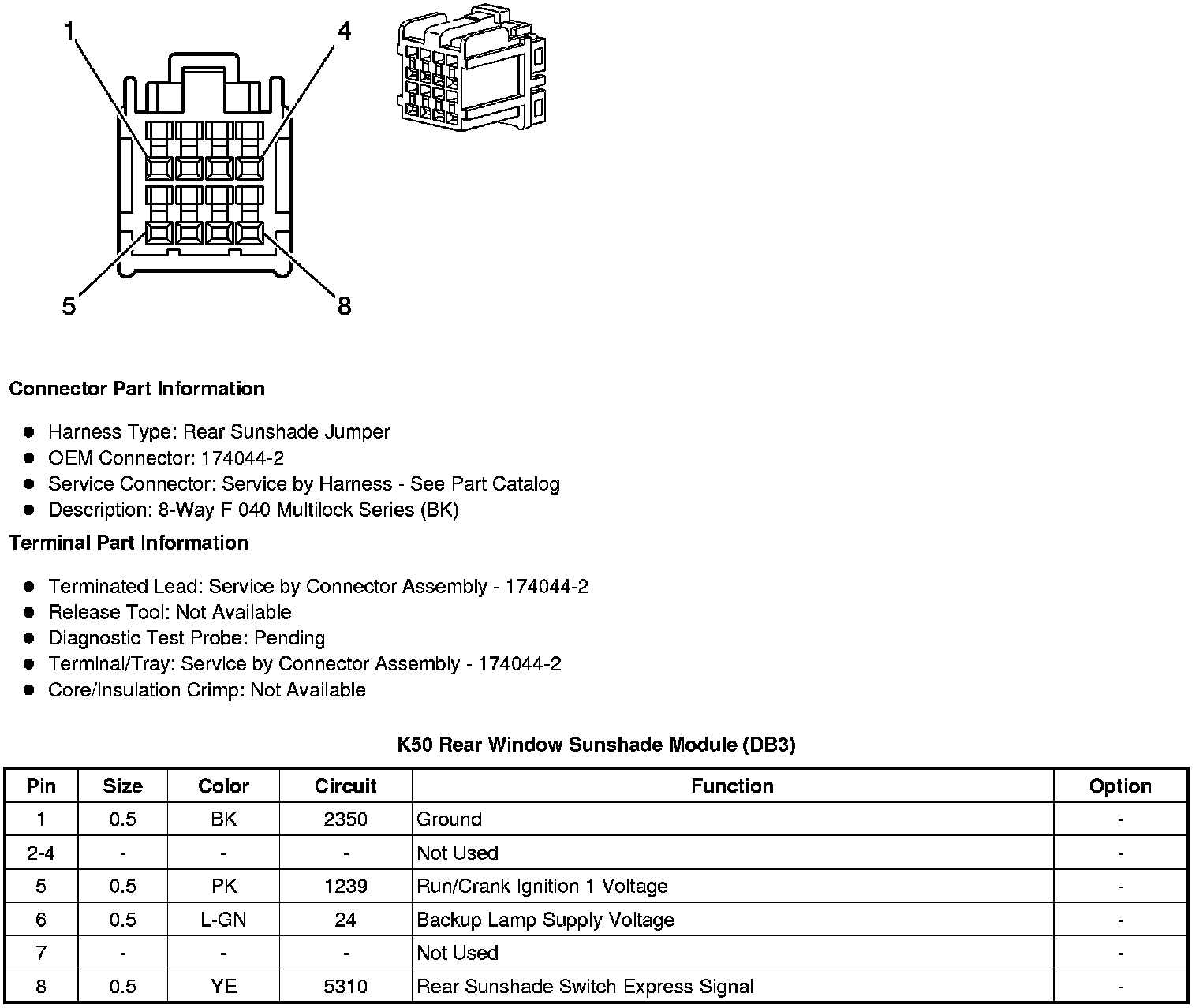

Component Connector End Views

K50 Rear Window Sunshade Module (DB3)
