Home
>>
Buick
>>
2012
>>
LaCrosse FWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Seat Temperature Control Module
>>
Seat Heating Control Module X3 (KA1 without A45)
Seat Heating Control Module X3 (KA1 without A45)

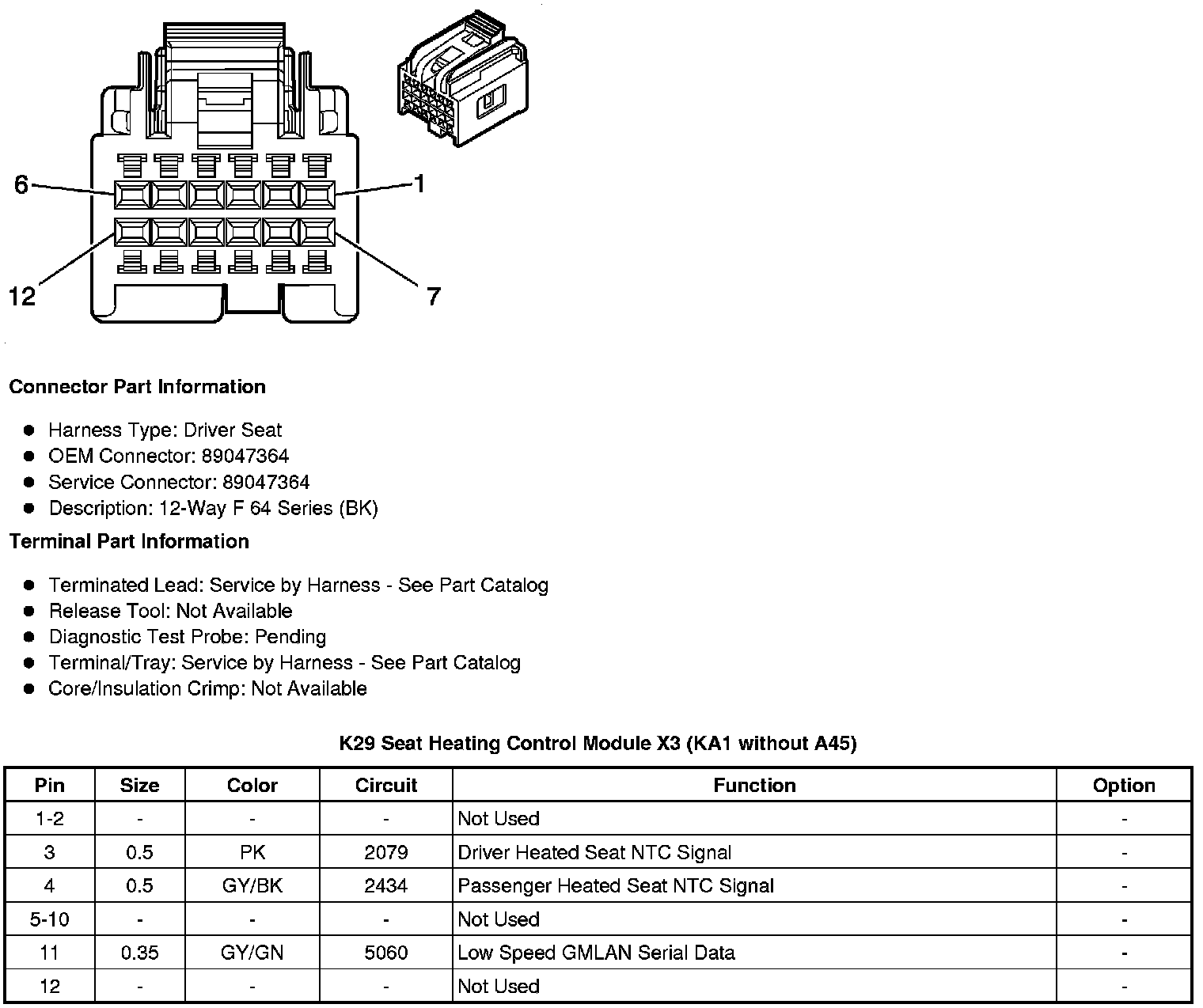

Component Connector End Views
K29 Seat Heating
Control Module
X3 (KA1 without A45)
