Connector Views
>>
Radiator Shutter
Radiator Shutter
Component Connector End Views

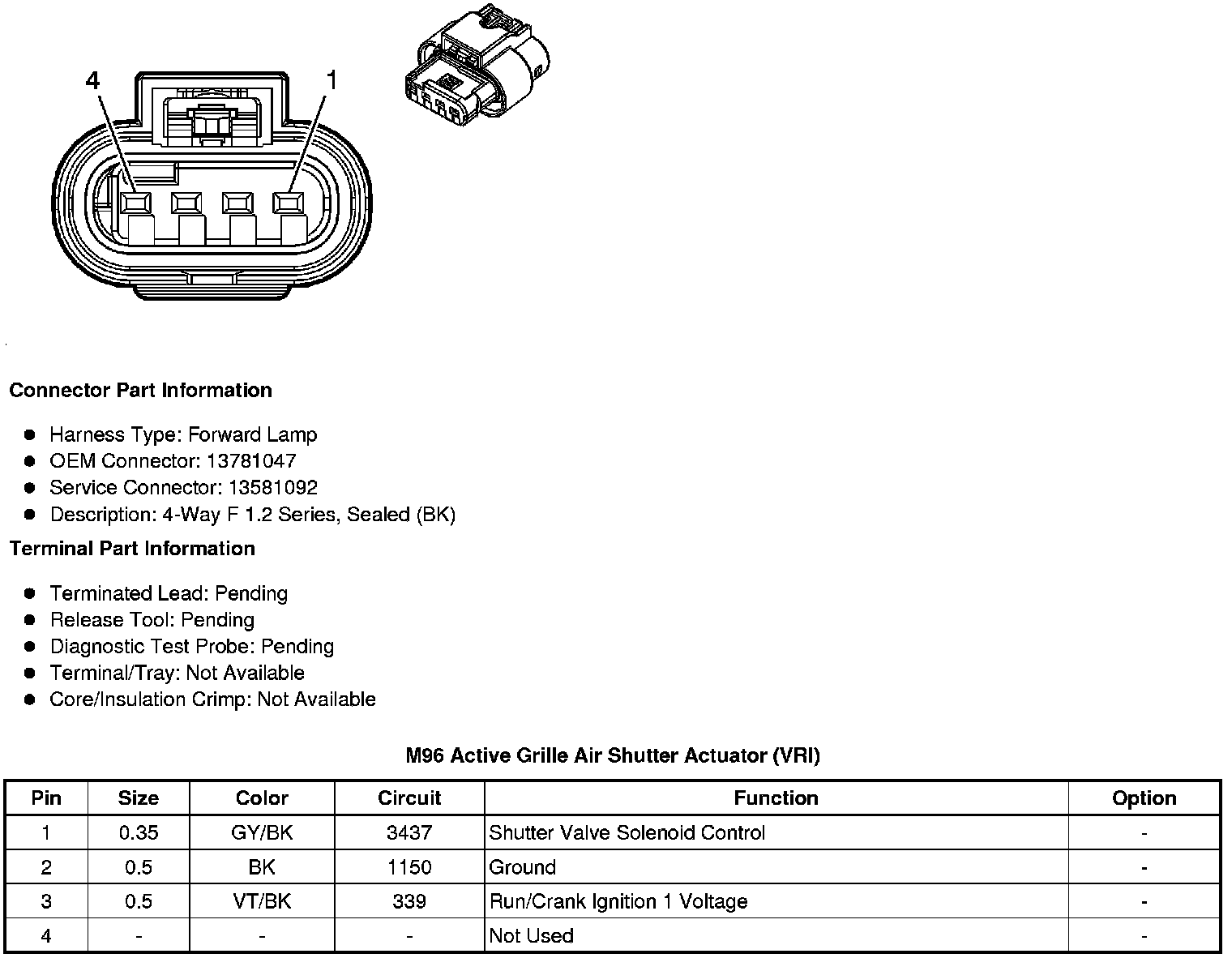

M96 Active Grille Air Shutter Actuator (VRI)
