Home >> Buick >> 2012 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Lock Solenoid

Ignition Lock Solenoid

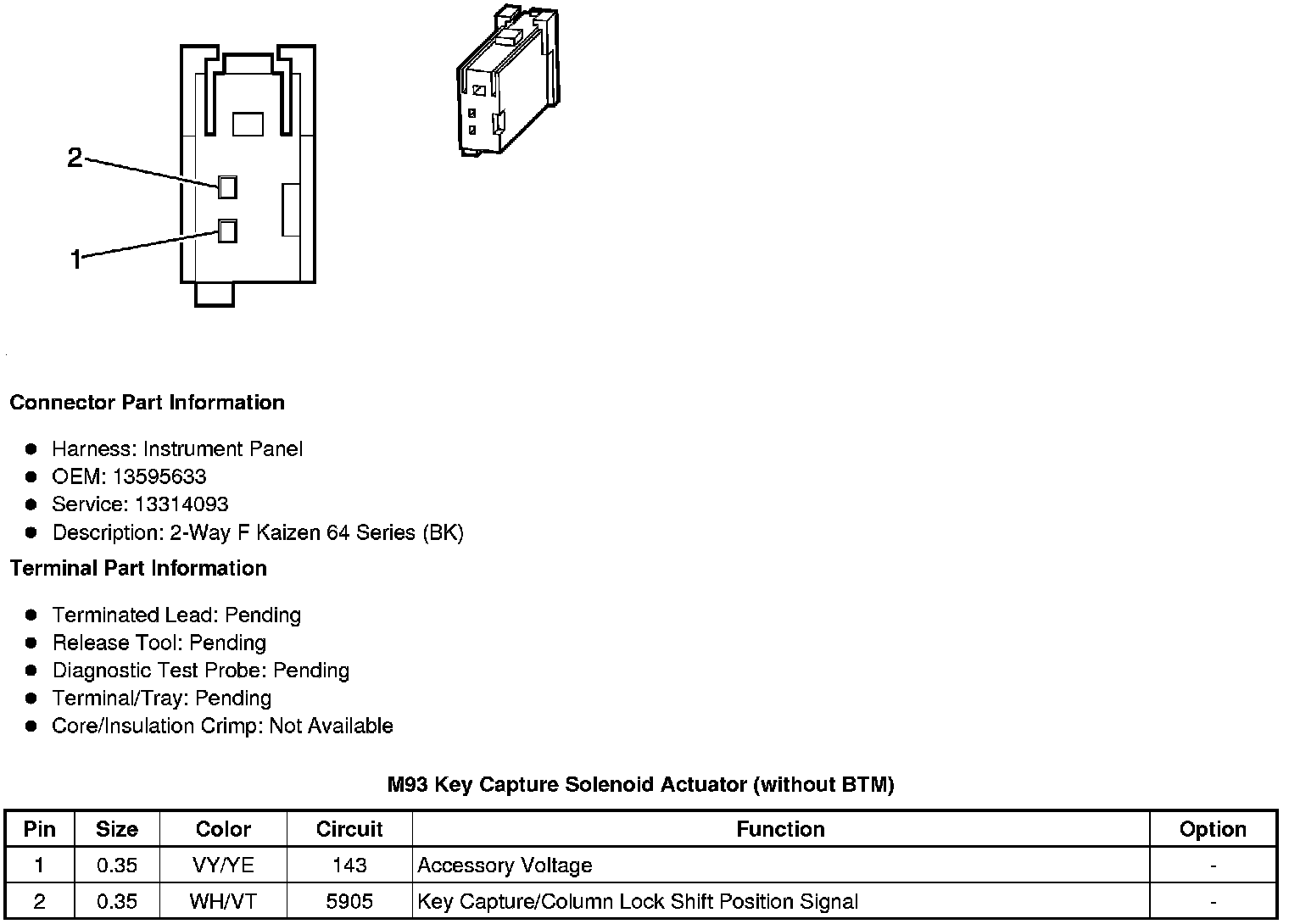

Component Connector End Views

M93 Key Capture Solenoid Actuator (without BTM)
