Fuel Pump and Level Sensor Assembly

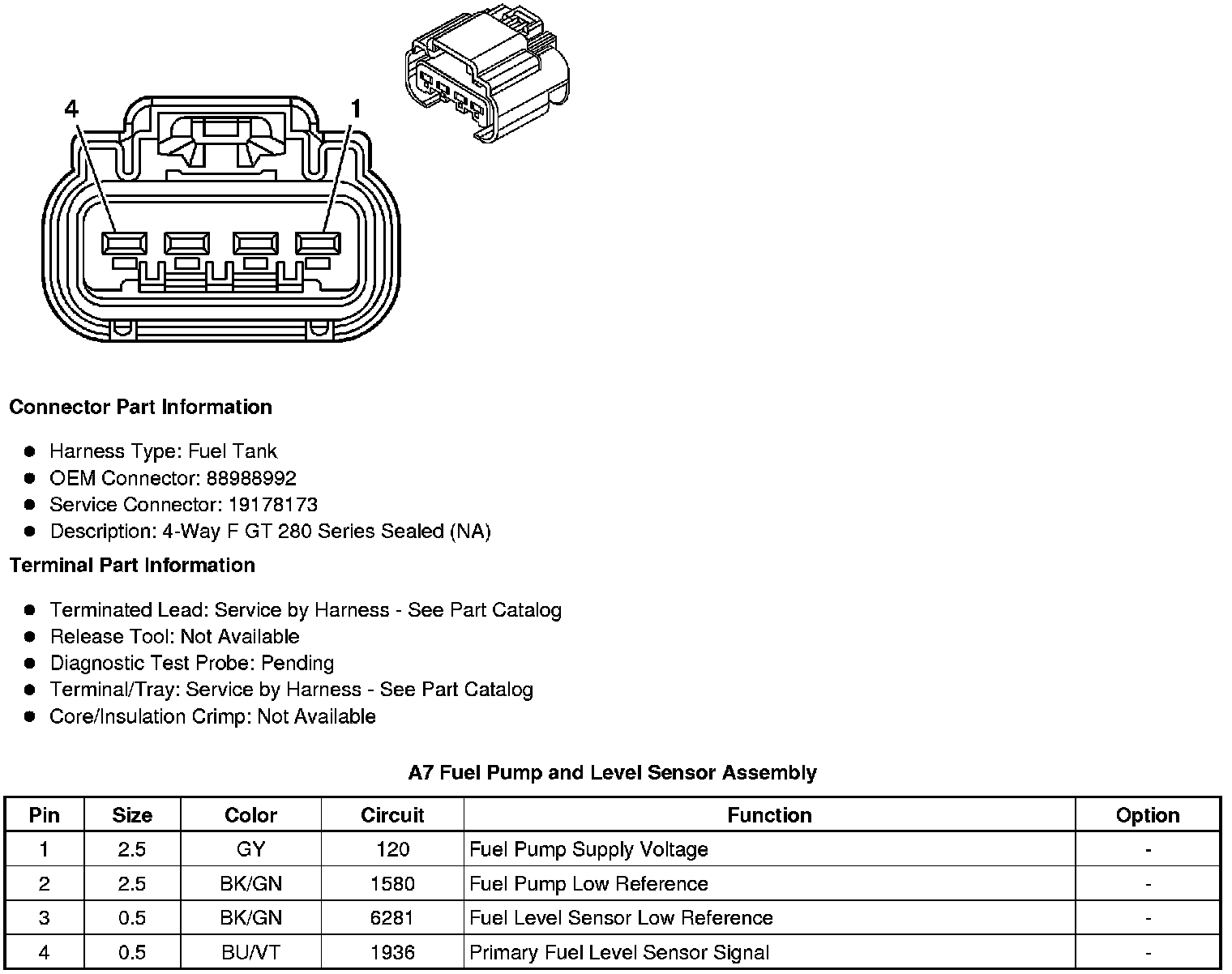

Component Connector End Views

A7 Fuel Pump and Level Sensor Assembly
