Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch

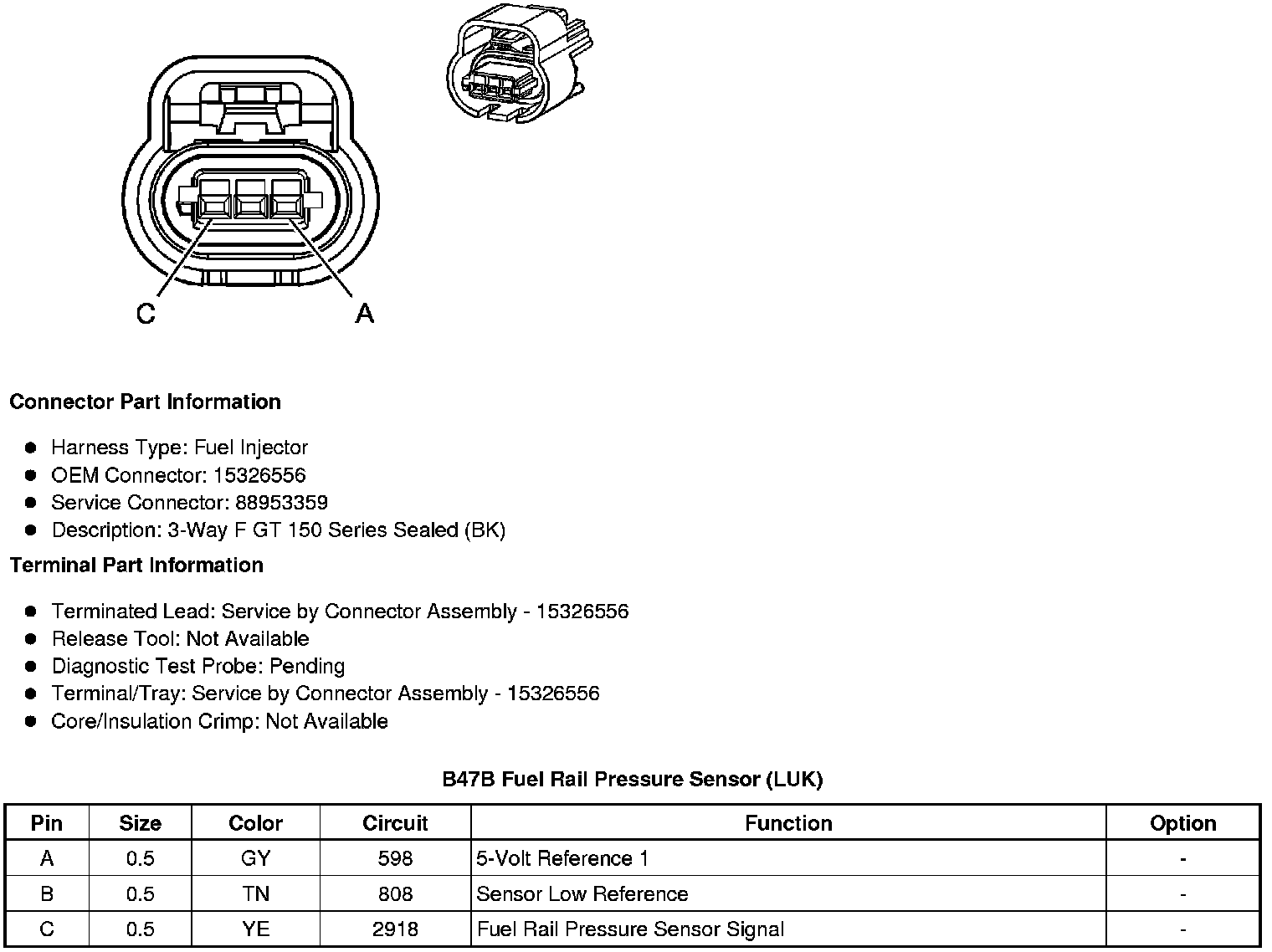

Component Connector End Views
B47B Fuel Rail Pressure Sensor (LUK)
