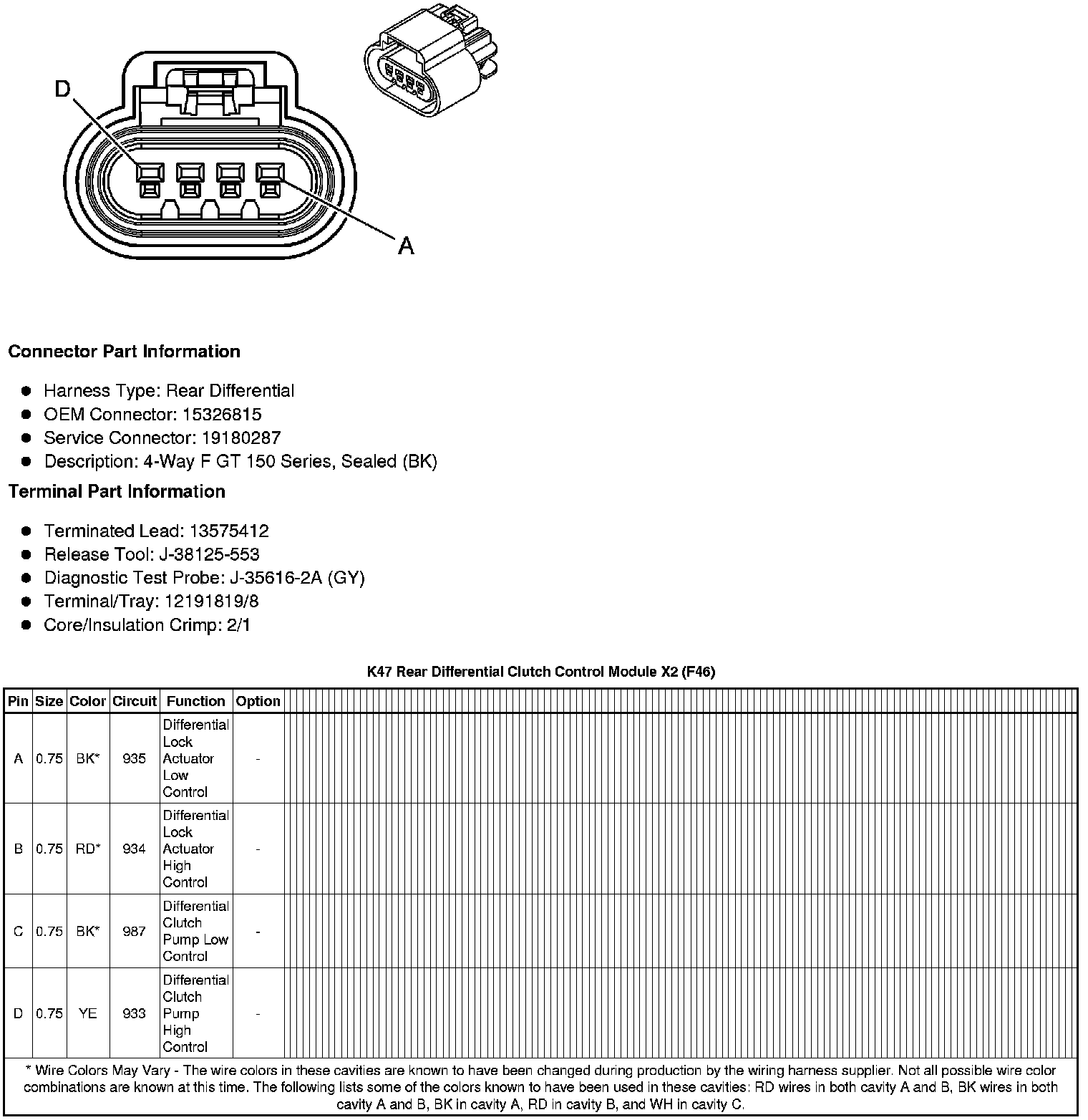

Rear Differential Clutch Control Module X2 (F46)




Component Connector End Views

K47 Rear Differential Clutch Control Module X2 (F46)
