Seat Occupant Classification Module - Air Bag

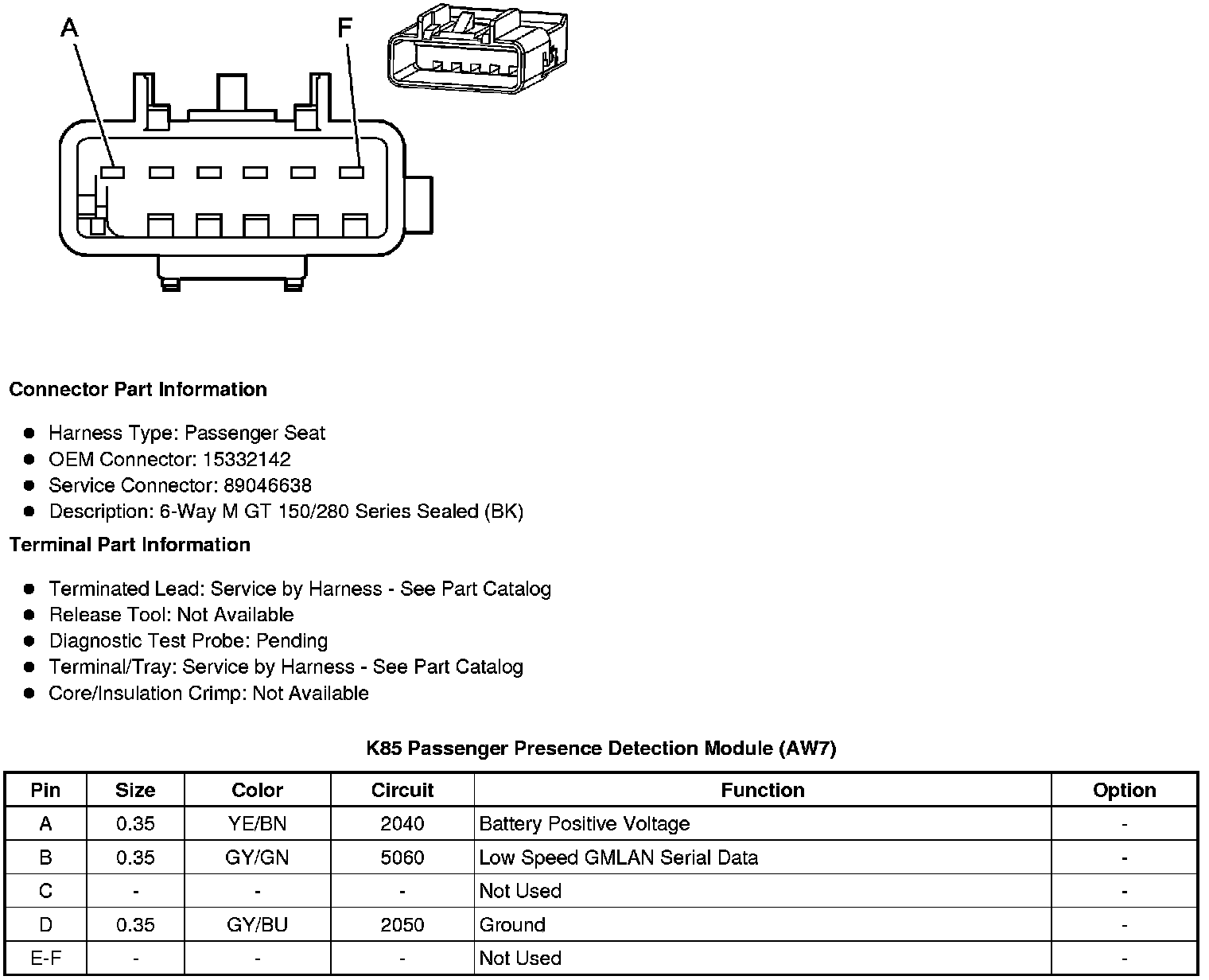

Component Connector End Views

K85 Passenger Presence Detection Module (AW7)
