Side Impact Sensor - Left Front

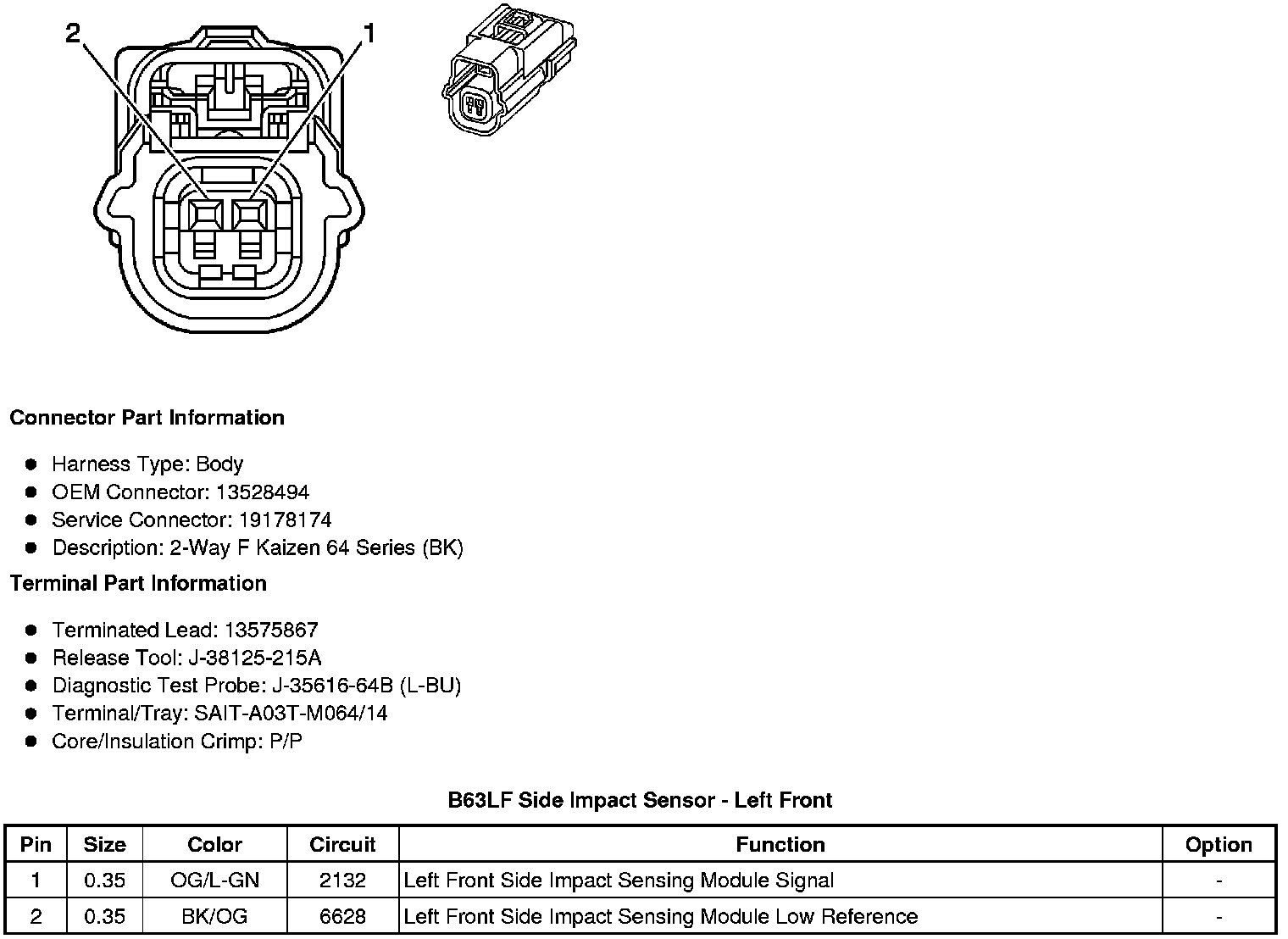

Component Connector End Views

B63LF Side Impact Sensor - Left Front
