Climate Control Exhaust Gas Sensor
Climate Control Exhaust Gas Sensor
Component Connector End Views

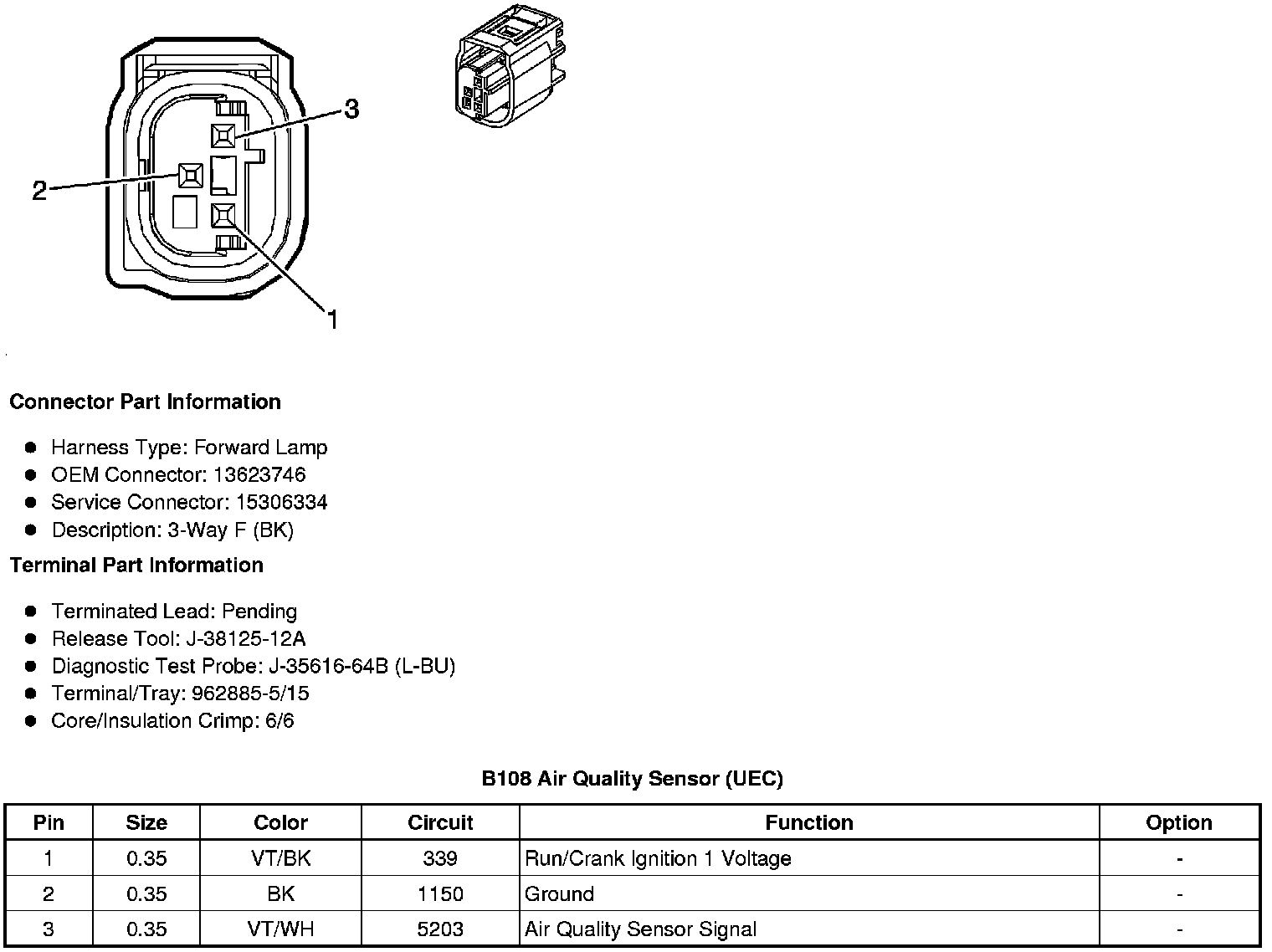

B108 Air Quality Sensor (UEC)
