Brake Light Switch
Brake Light Switch

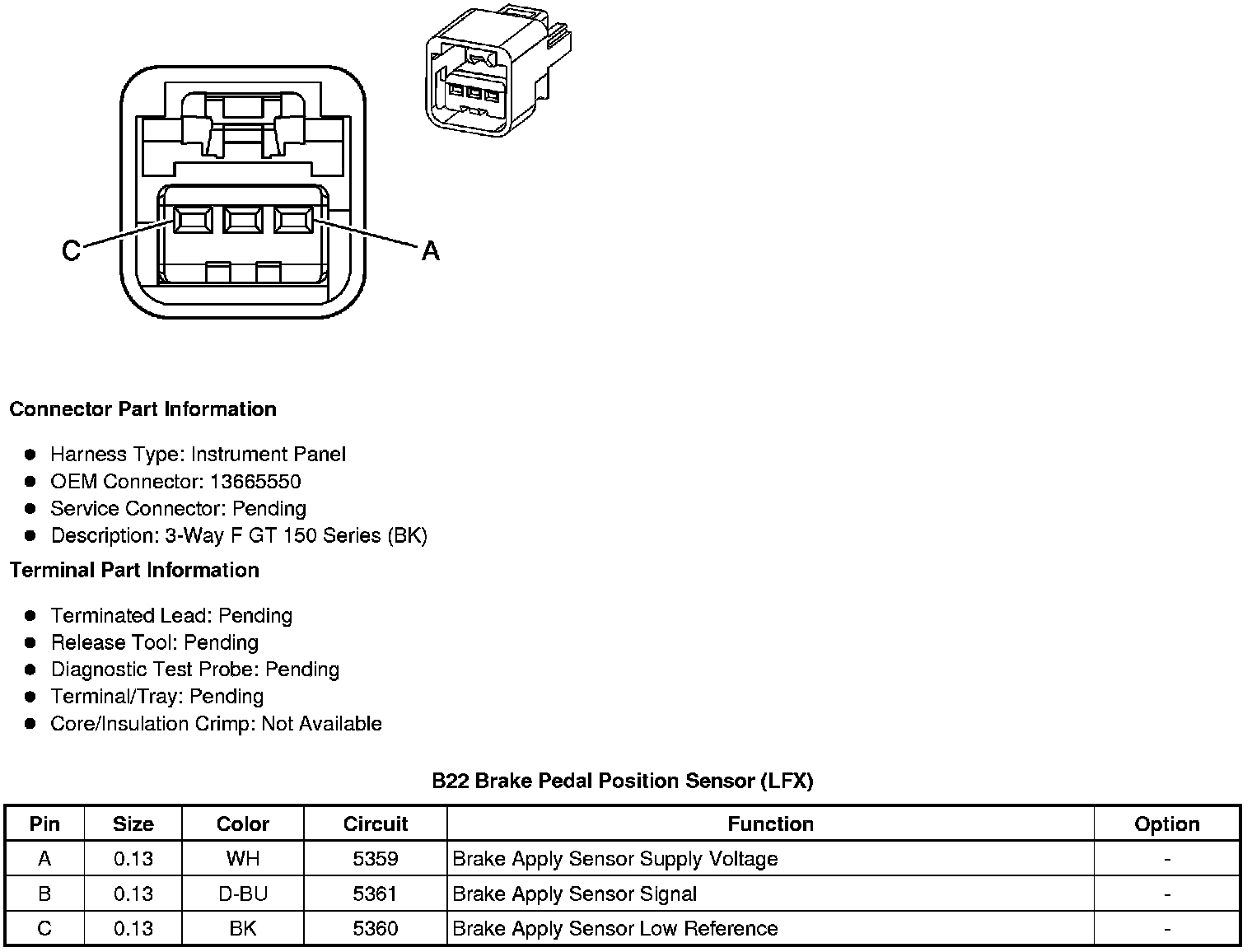

Component Connector End Views
B22 Brake Pedal Position Sensor (LFX)
