B162LF Vertical Body Acceleration Sensor - Left Front (F45)
B162LF Vertical Body Acceleration Sensor - Left Front (F45)

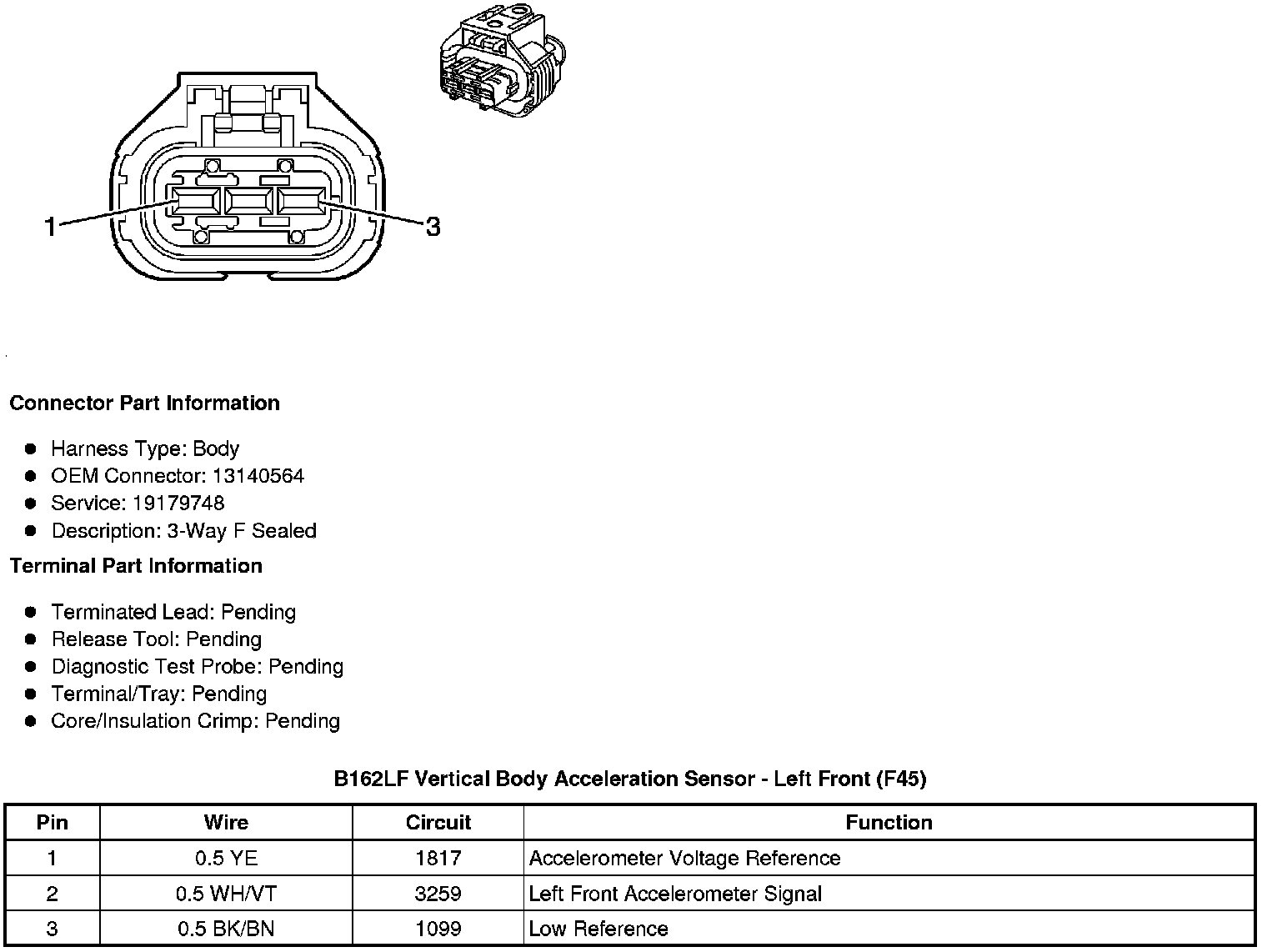

Component Connector End Views
B162LF Vertical Body Acceleration Sensor - Left Front (F45)
