Windows




Moveable Window Schematics

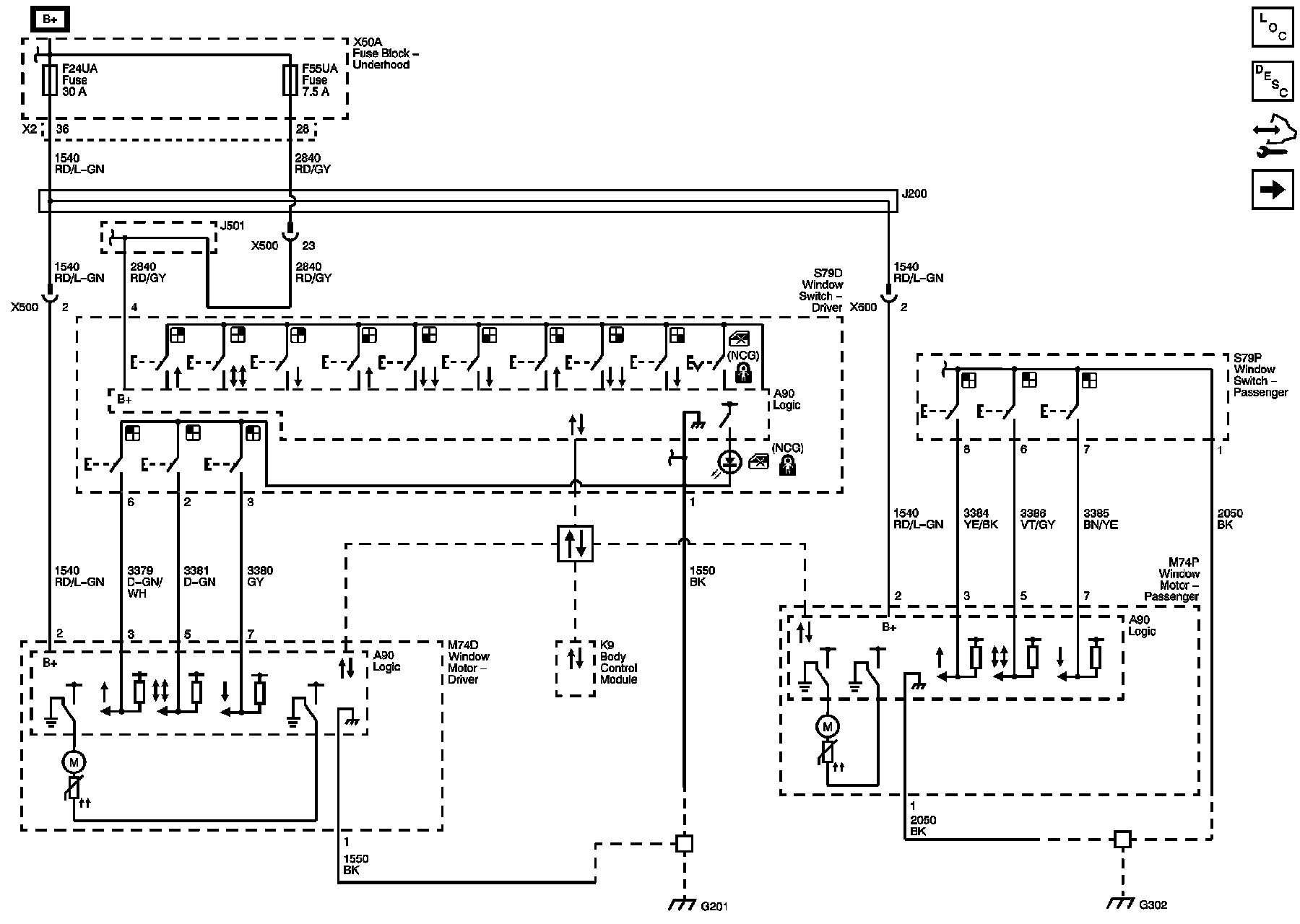

Window Switches and Motors - Front Doors





Window Switches and Motors - Rear Doors
