Transmission Mode Switch, A/T

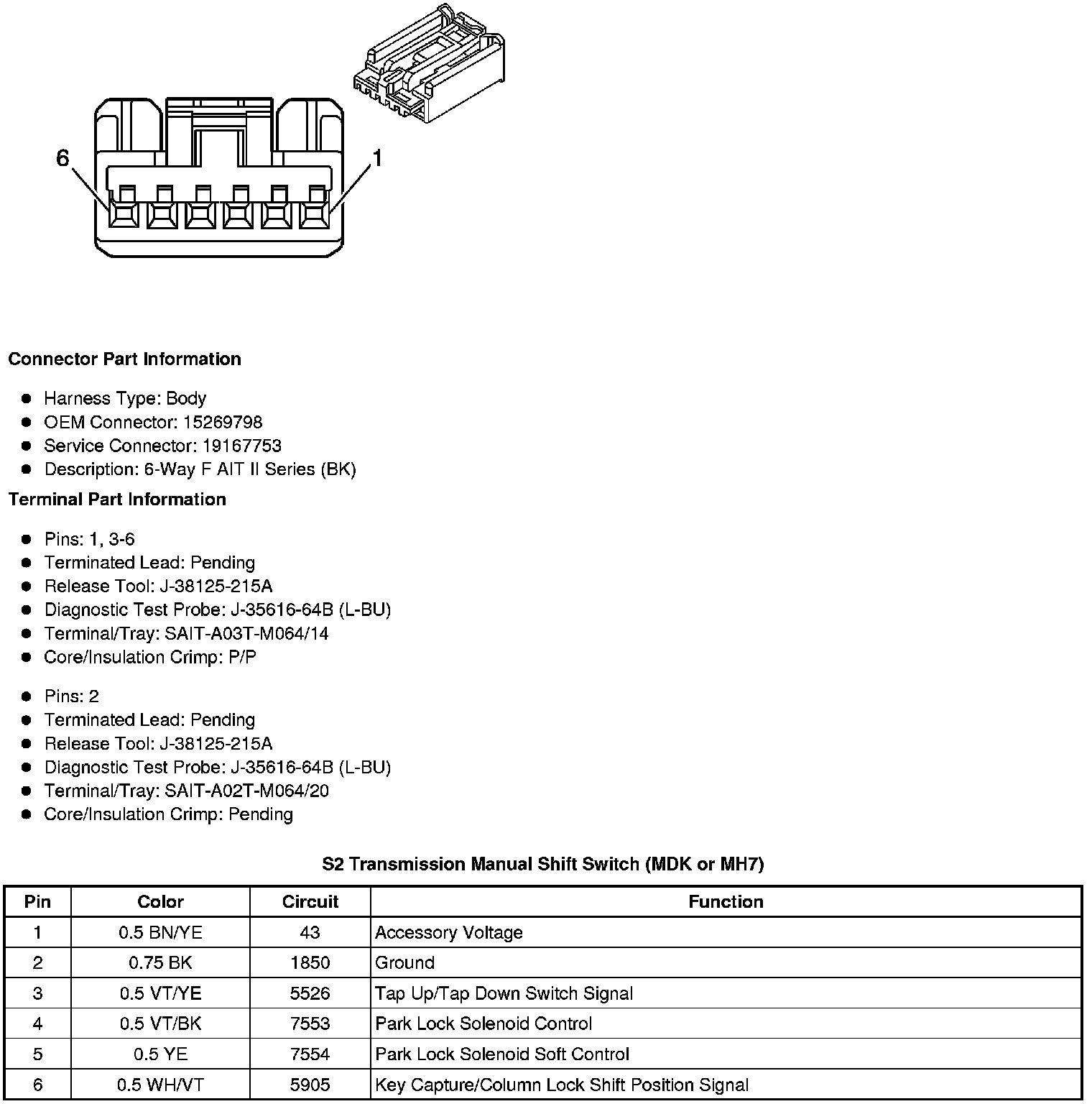

Component Connector End Views

S2 Transmission Manual Shift Switch (MDK or MH7)
