Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

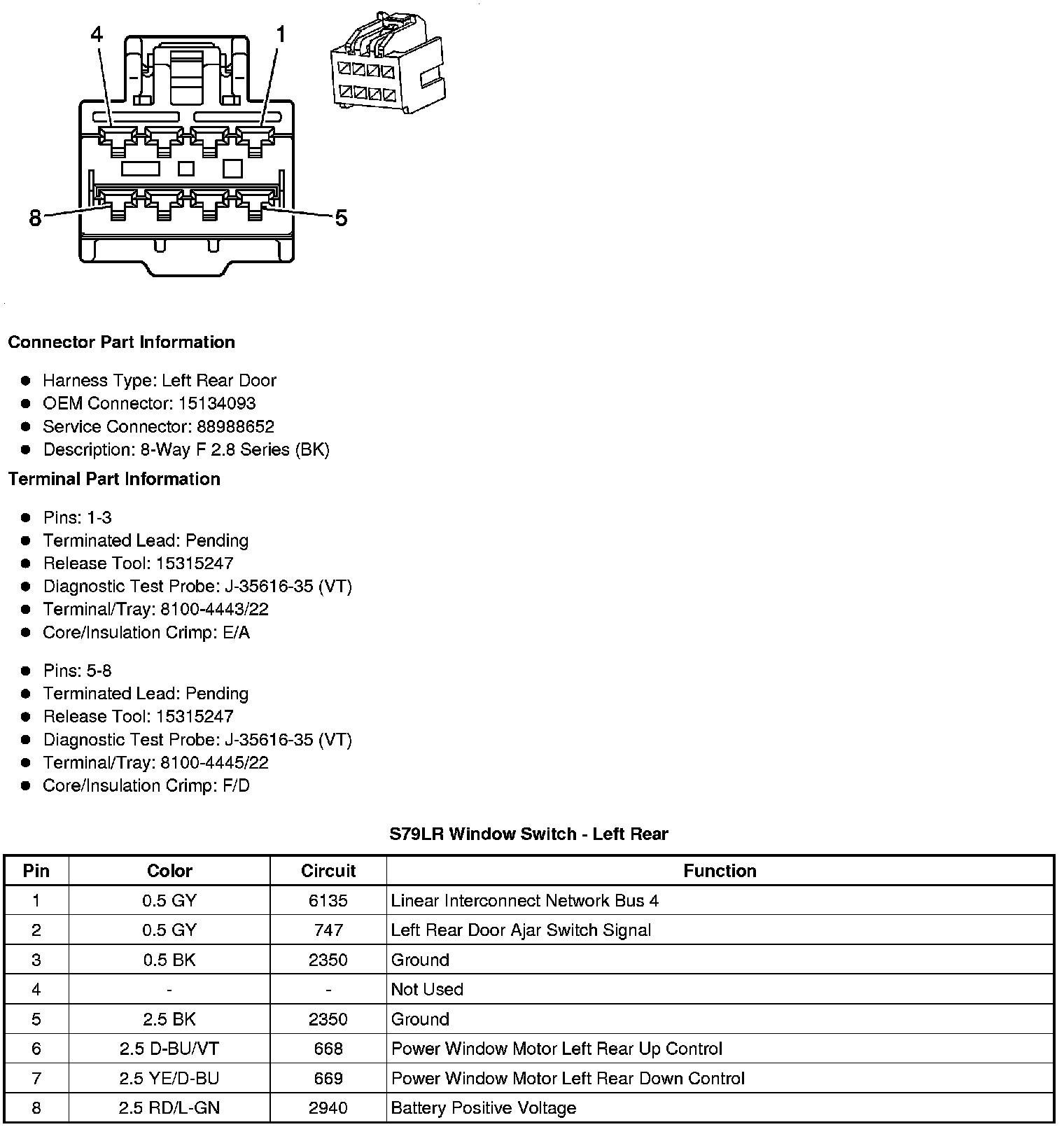

S79LR Window Switch - Left Rear
S79LR Window Switch - Left Rear
Component Connector End Views
S79LR Window Switch - Left Rear
