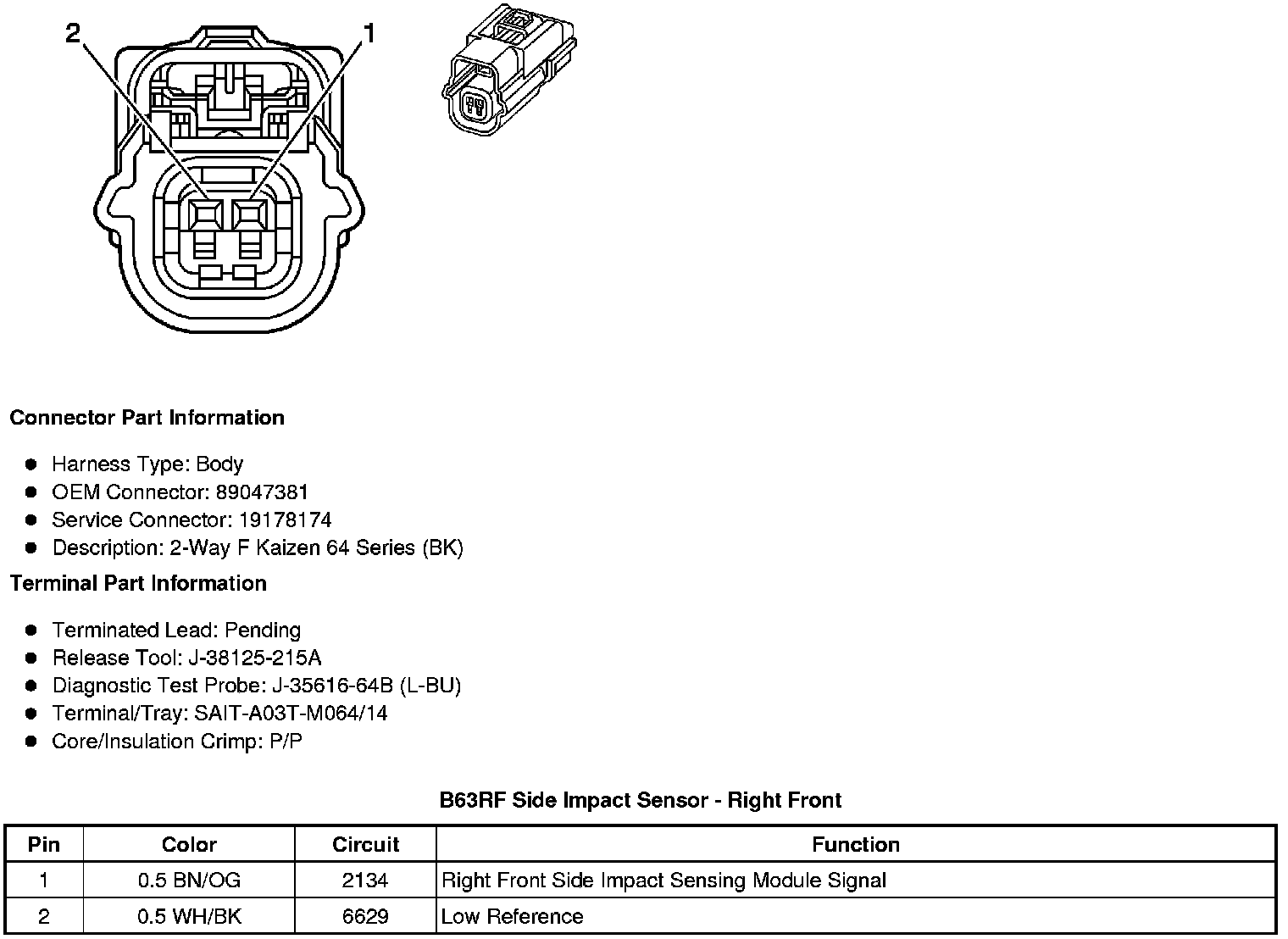

B63RF Side Impact Sensor - Right Front
B63RF Side Impact Sensor - Right Front
Component Connector End Views
B63RF Side Impact Sensor - Right Front
