Impact Sensor
>>
B63LF Side Impact Sensor - Left Front
B63LF Side Impact Sensor - Left Front

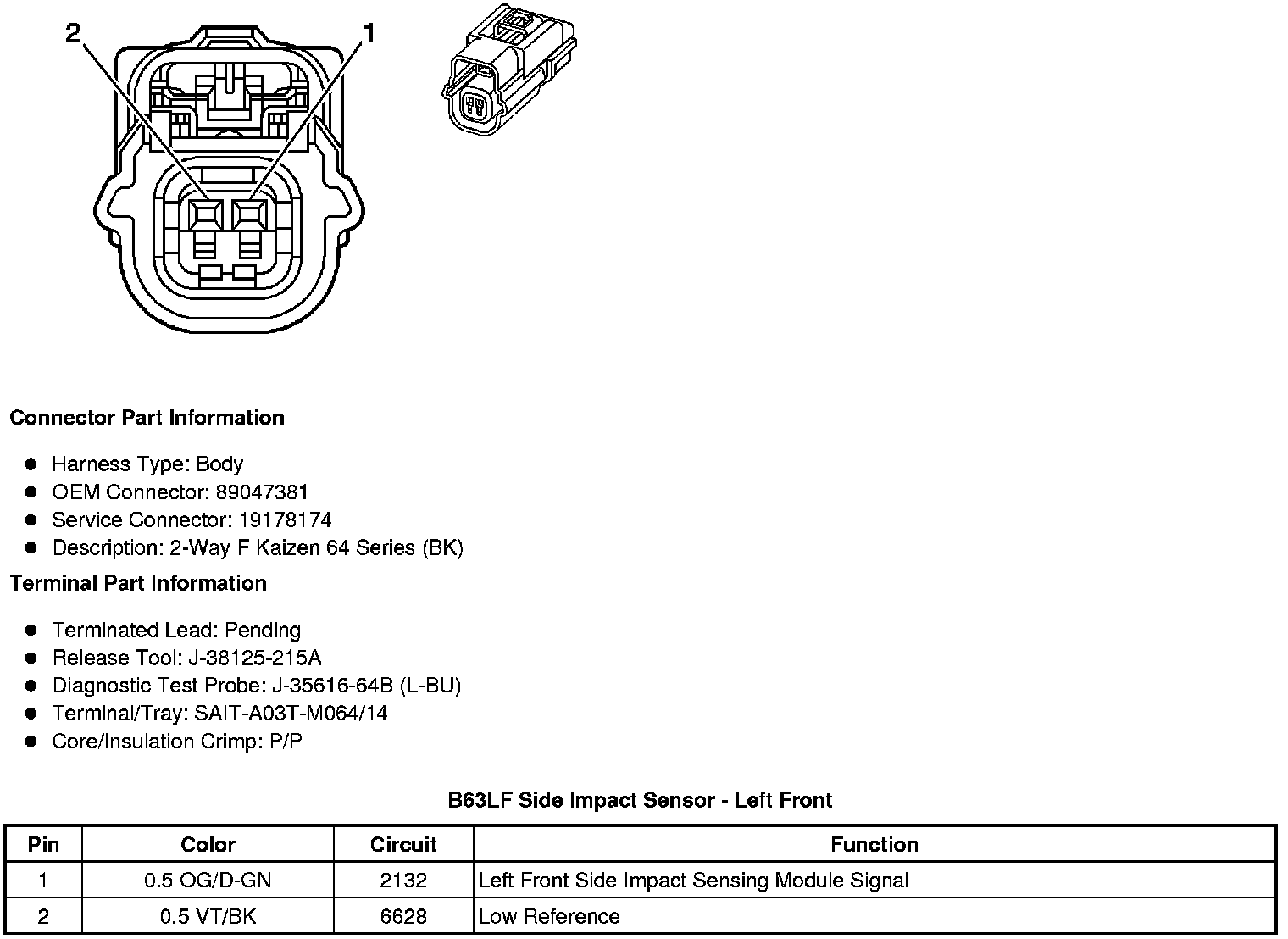

Component Connector End Views
B63LF Side Impact Sensor - Left Front
