Impact Sensor
>>
B59L Front Impact Sensor - Left
B59L Front Impact Sensor - Left

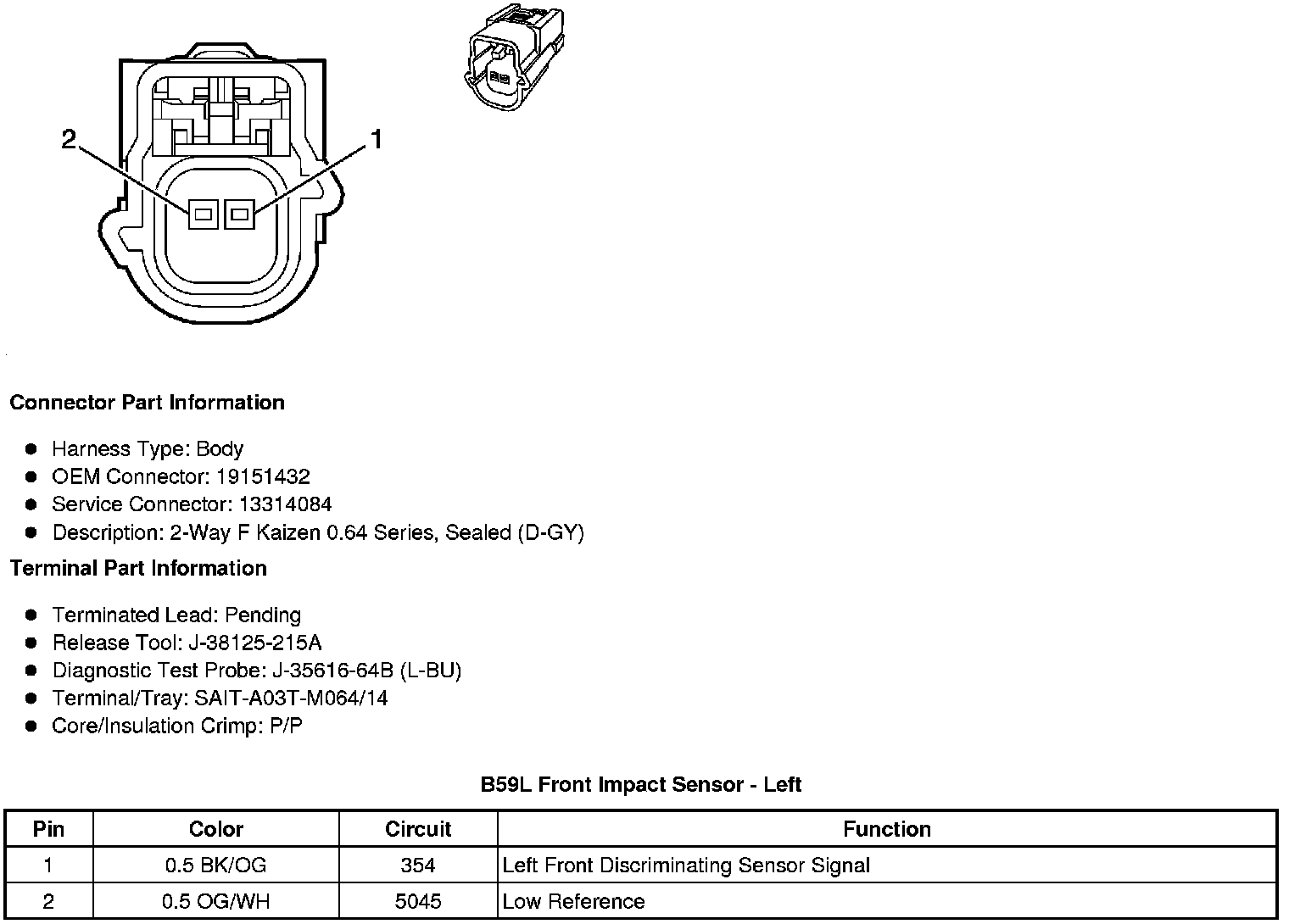

Component Connector End Views
B59L Front Impact Sensor - Left
