Home >> Buick >> 2011 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display

Driver/Vehicle Information Display

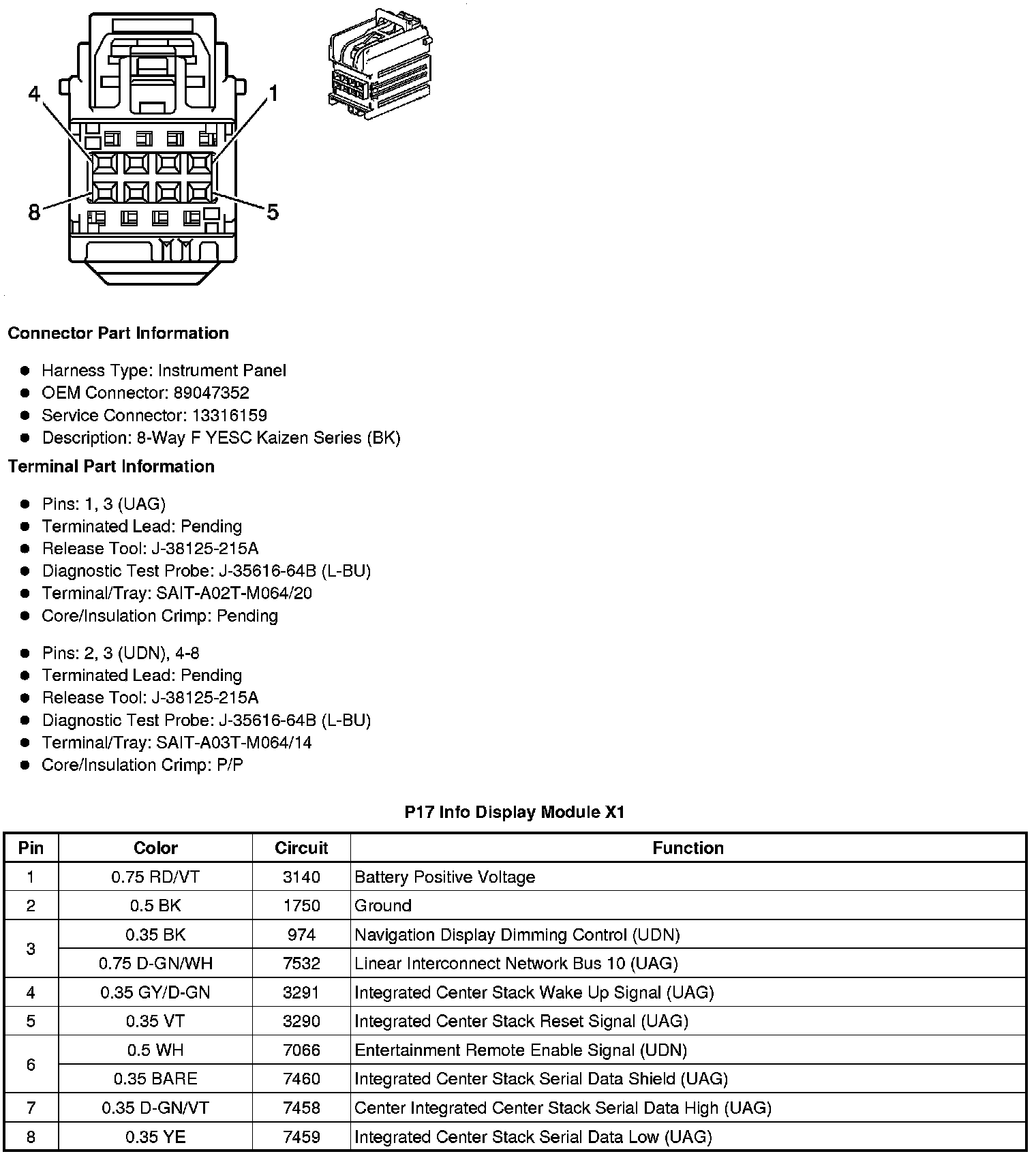

Component Connector End Views

P17 Info Display Module X1
