Control Assembly, HVAC
>>
A26 HVAC Controls
A26 HVAC Controls

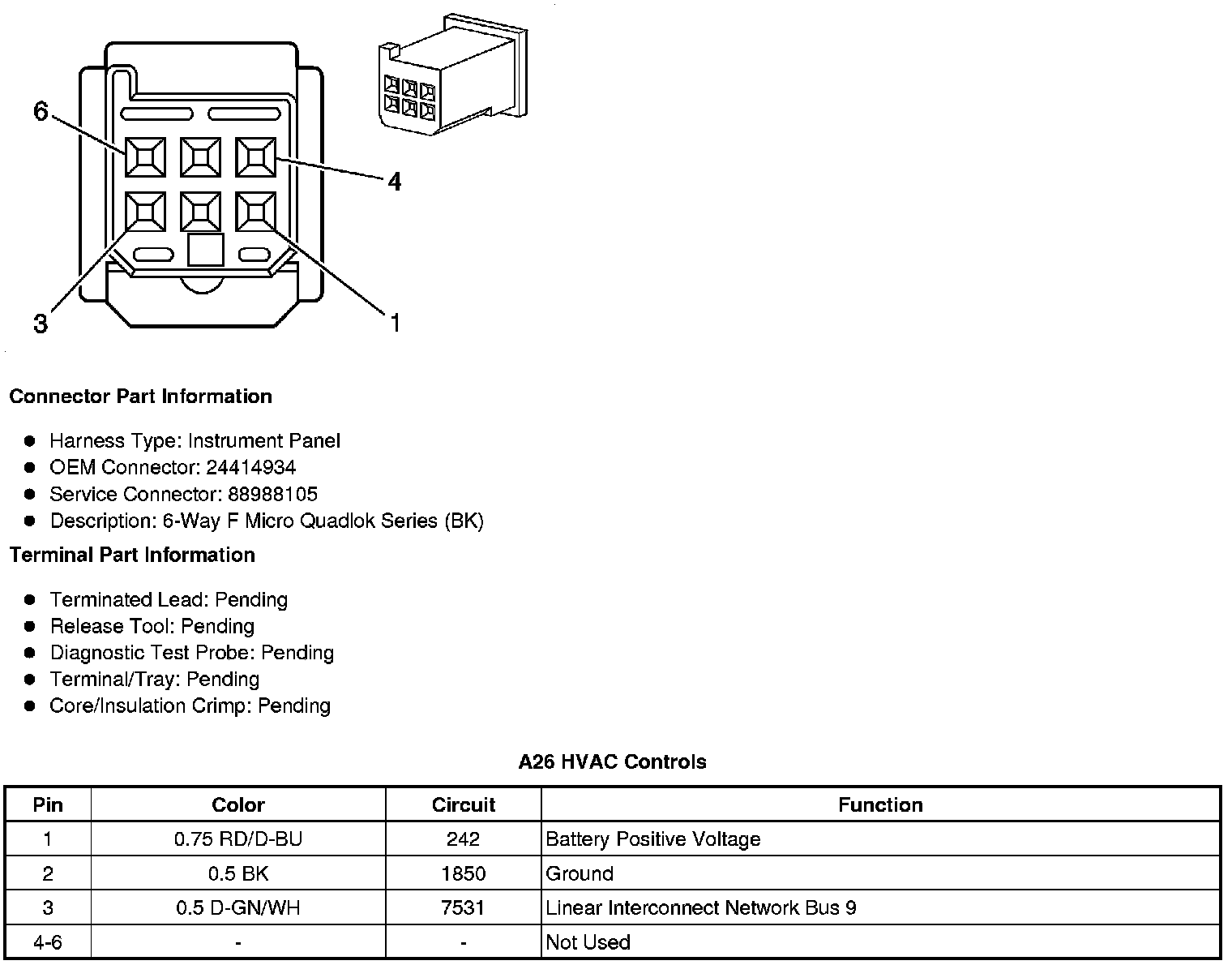

Component Connector End Views
A26 HVAC Controls
