Passenger Presence Detection Module K85
Passenger Presence Detection Module K85
Component Connector End Views

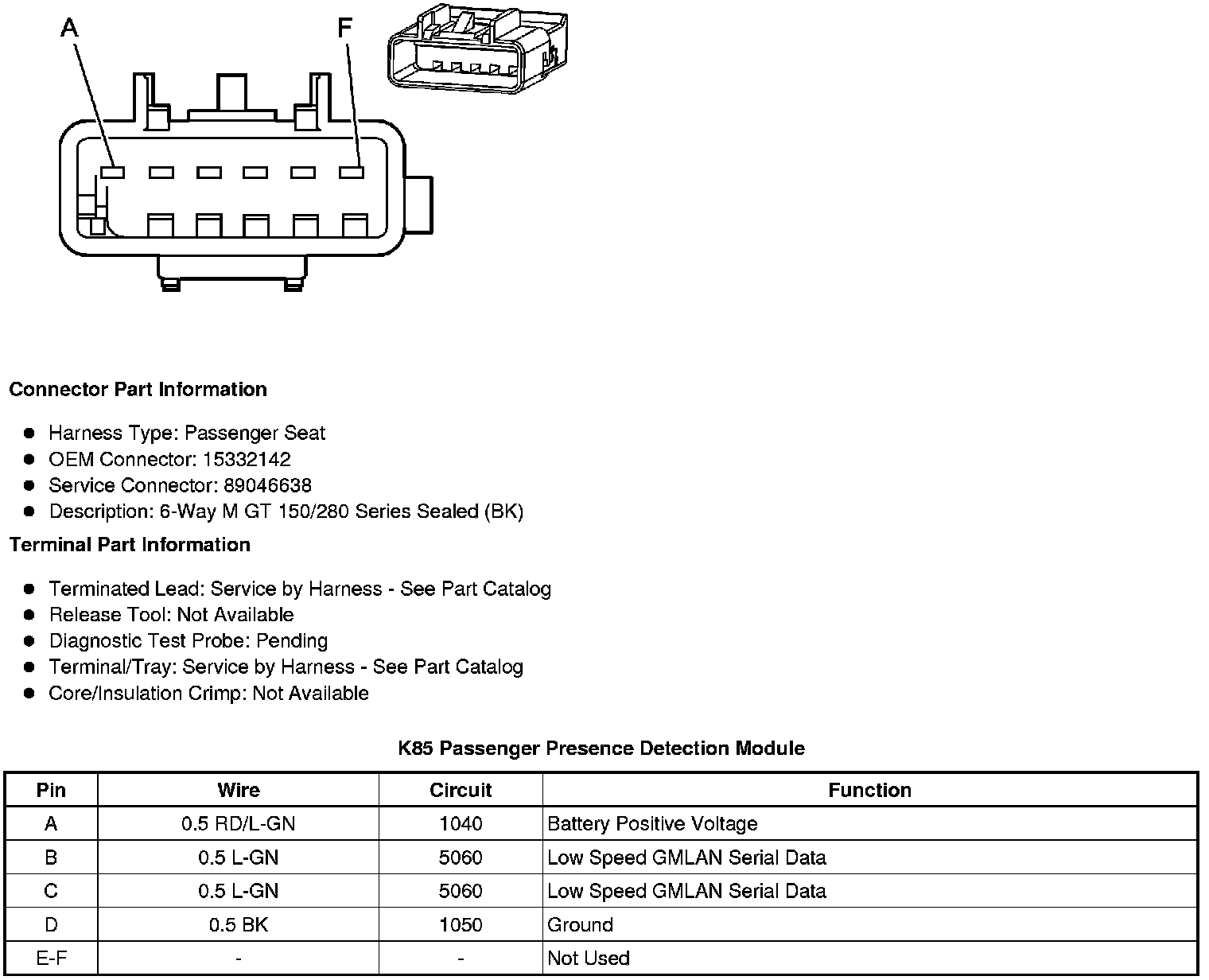

K85 Passenger Presence Detection Module
