Multi-Function Switch 2 - Instrument Panel S48D




Component Connector End Views

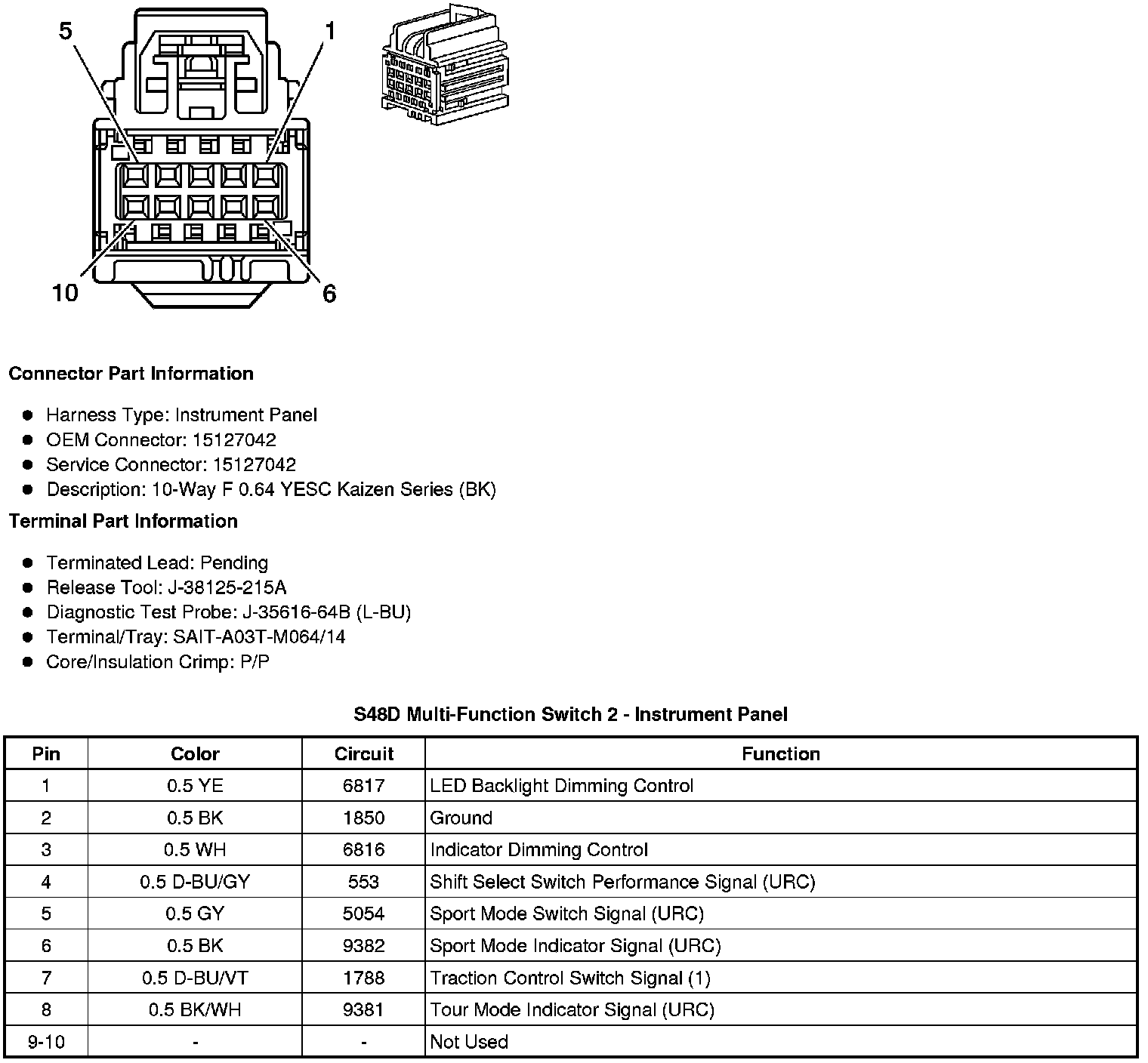

S48D Multi-Function Switch 2 - Instrument Panel
