Multi-Function Switch 1 - Instrument Panel S48C




Component Connector End Views

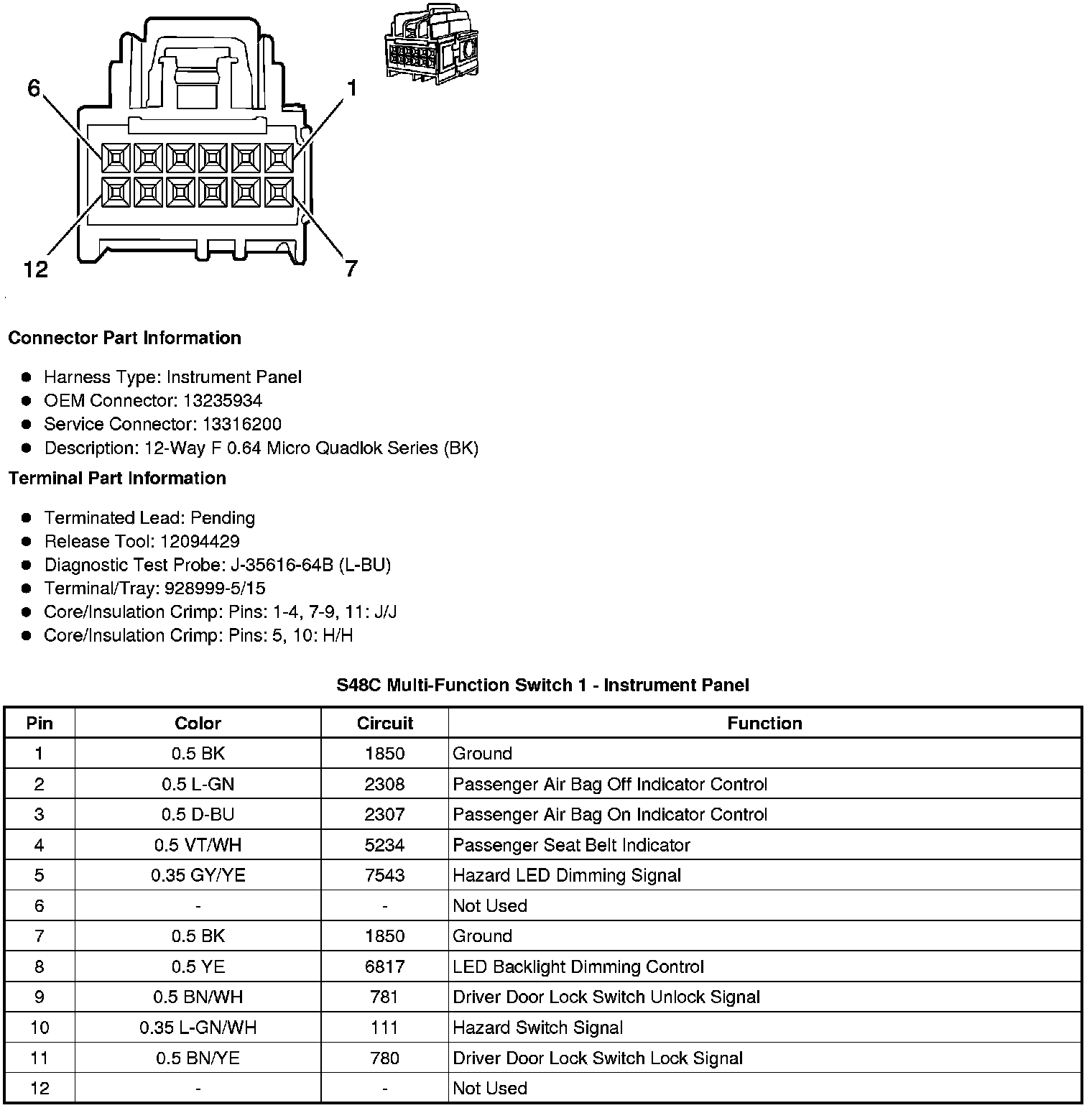

S48C Multi-Function Switch 1 - Instrument Panel
