K36 Inflatable Restraint Sensing and Diagnostic Module X1
K36 Inflatable Restraint Sensing and Diagnostic Module X1

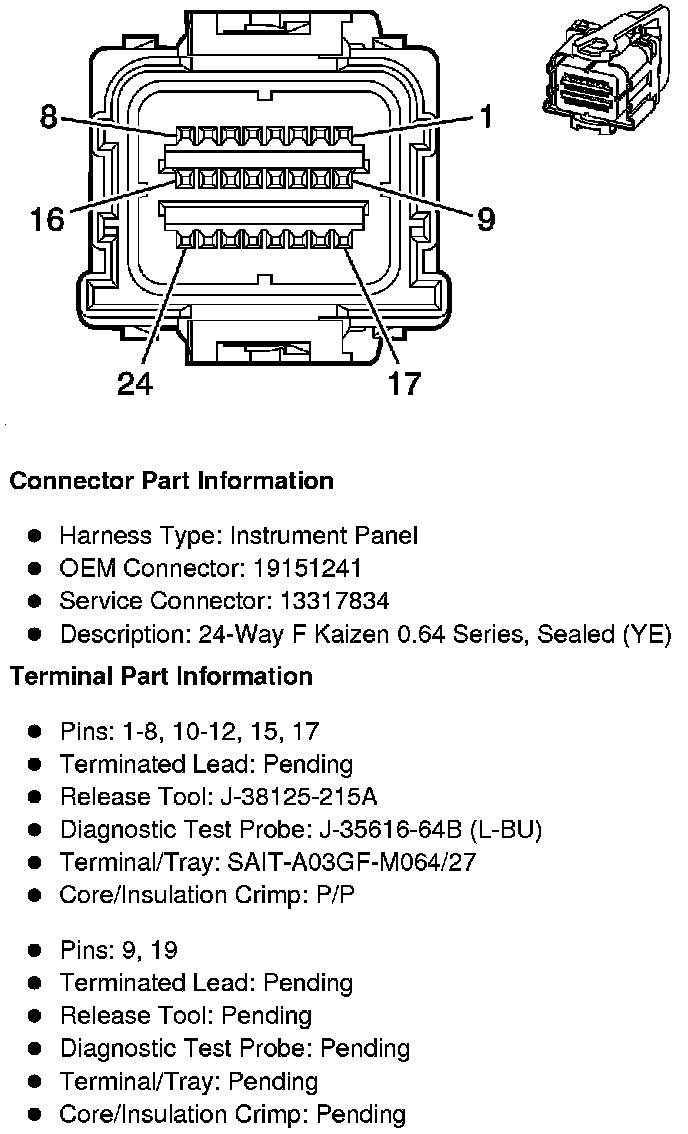

Component Connector End Views

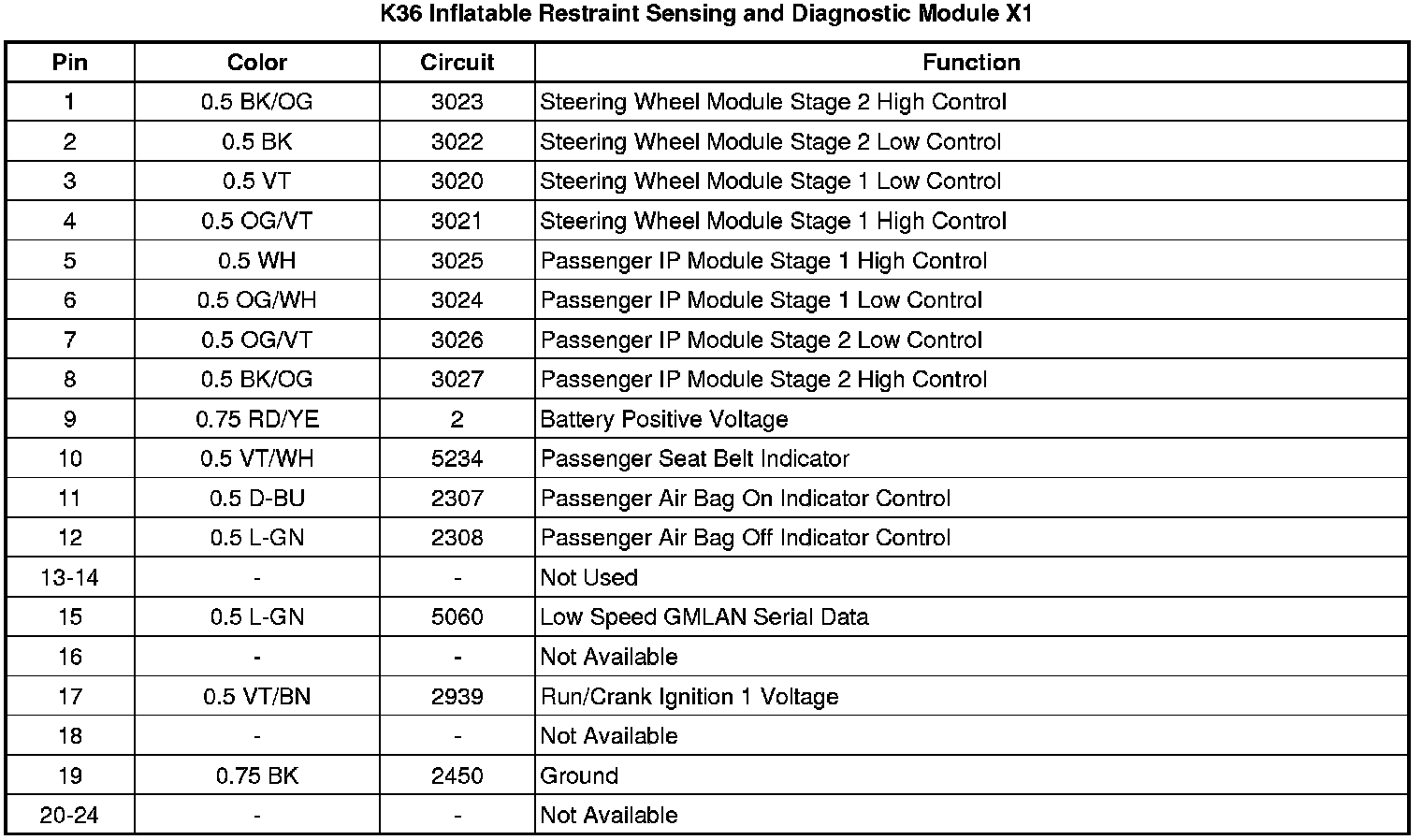

K36 Inflatable Restraint Sensing and Diagnostic Module X1
