Parking Brake Control Module: Locations




Wheels/Vehicle Underbody Component Views

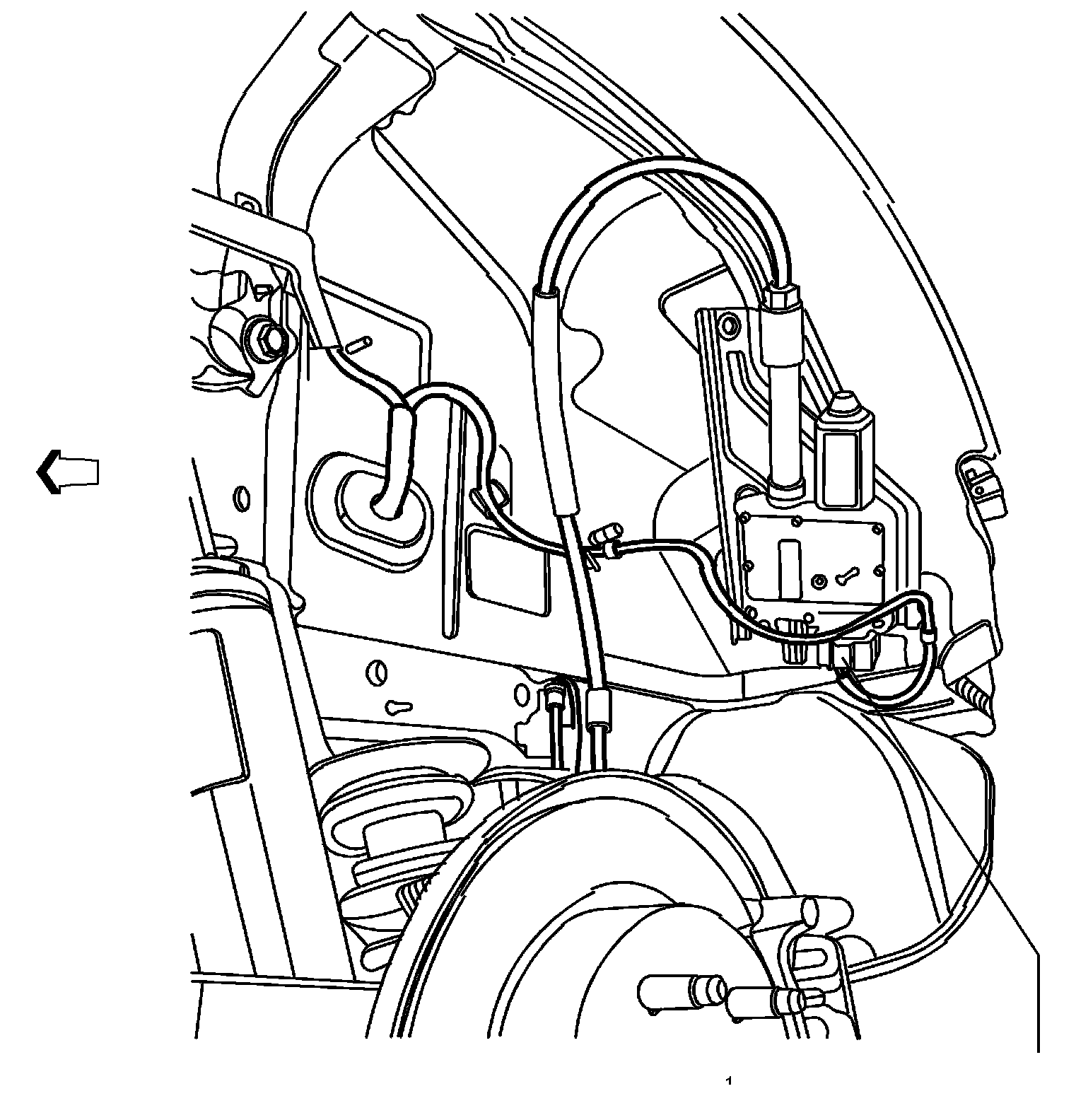

Right Rear Wheel Housing Components




1 - K83 Parking Brake Control Module
