Transmission Mode Switch, A/T
Transmission Mode Switch, A/T

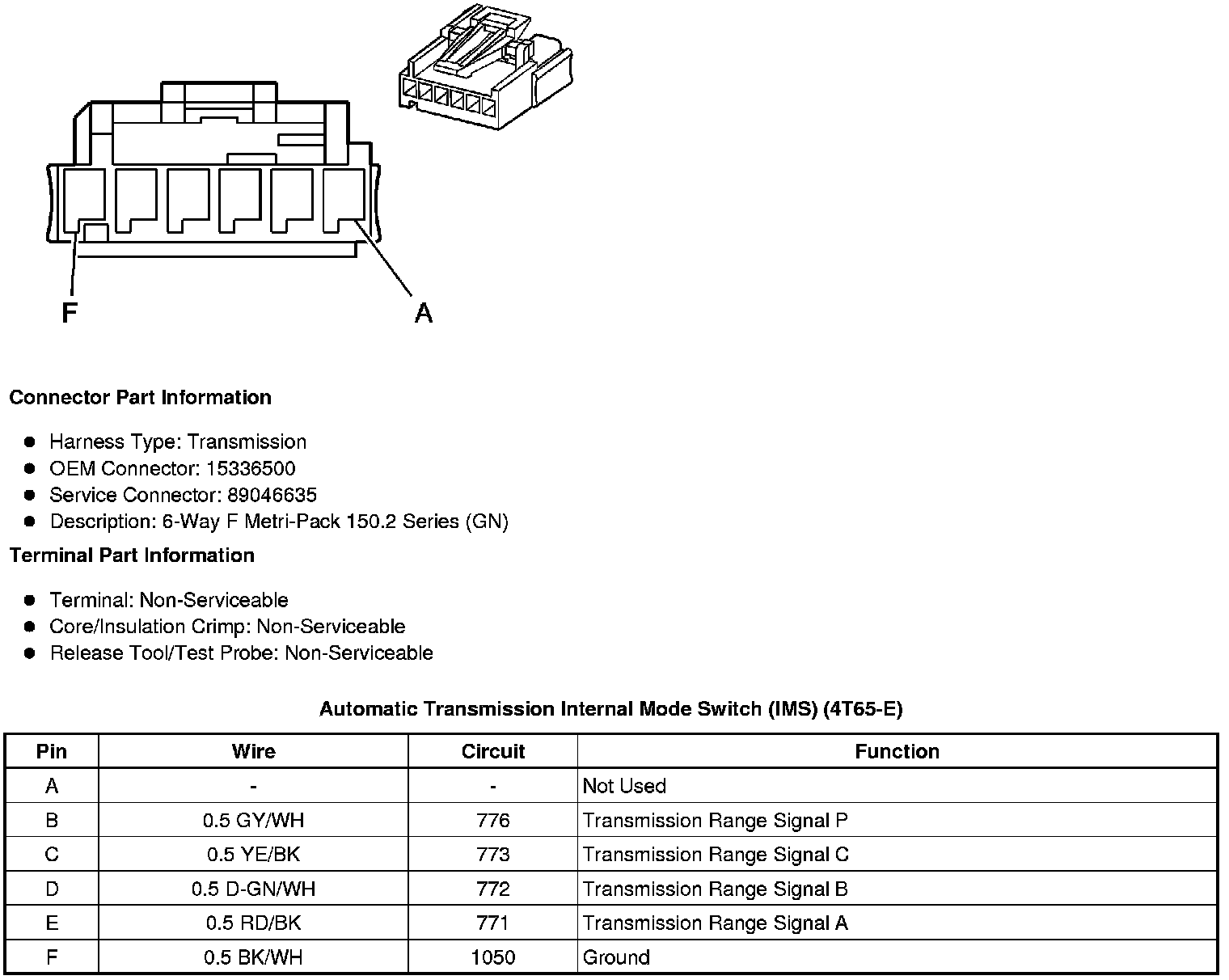

Component Connector End Views
Automatic Transmission Internal Mode Switch (IMS) (4T65-E)
