Home >> Buick >> 2011 >> Lucerne V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Position Sensor

Seat Position Sensor

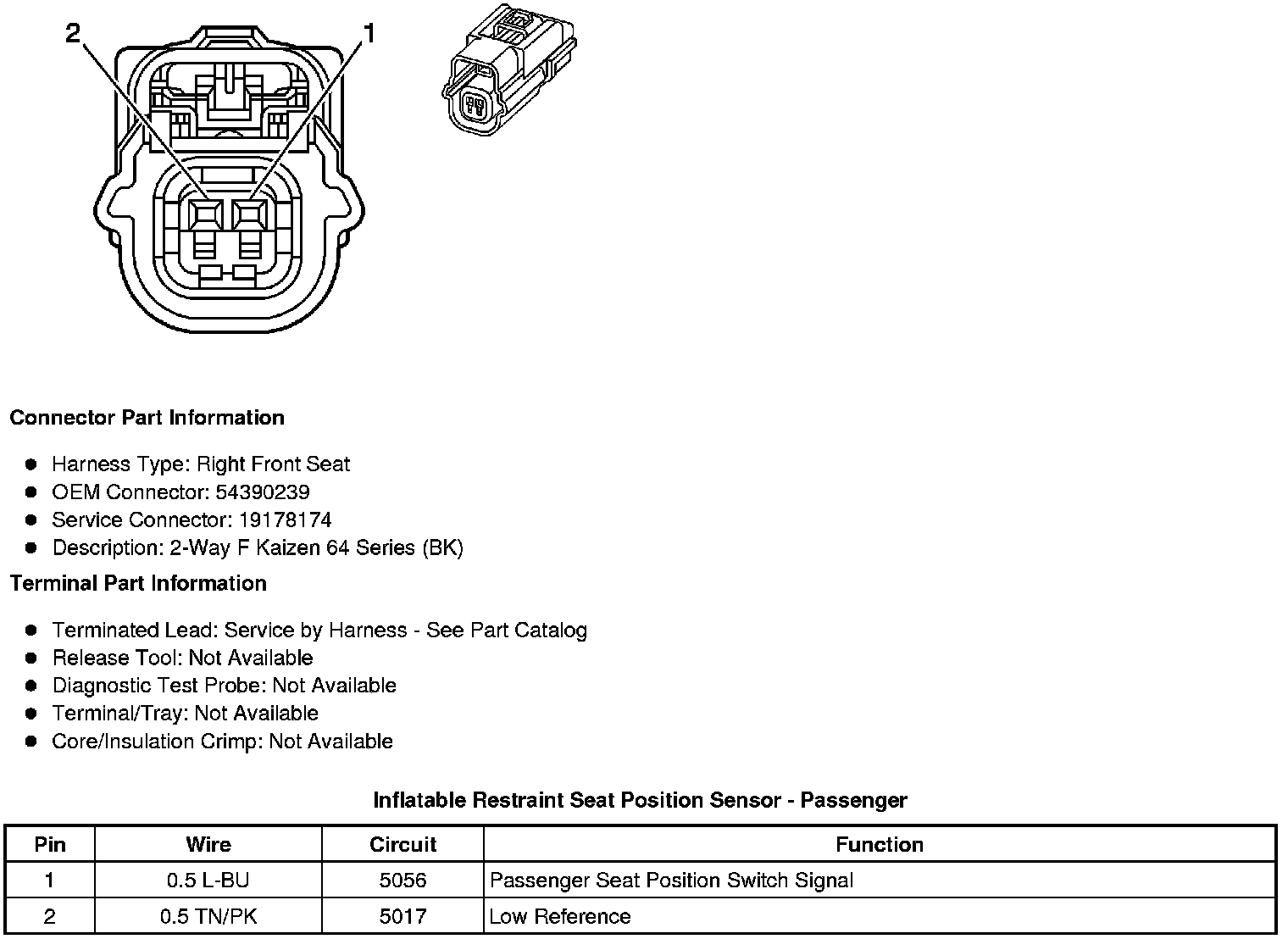

Component Connector End Views

Inflatable Restraint Seat Position Sensor - Passenger
