Home
>>
Buick
>>
2011
>>
Lucerne V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Rain Sensor
Rain Sensor

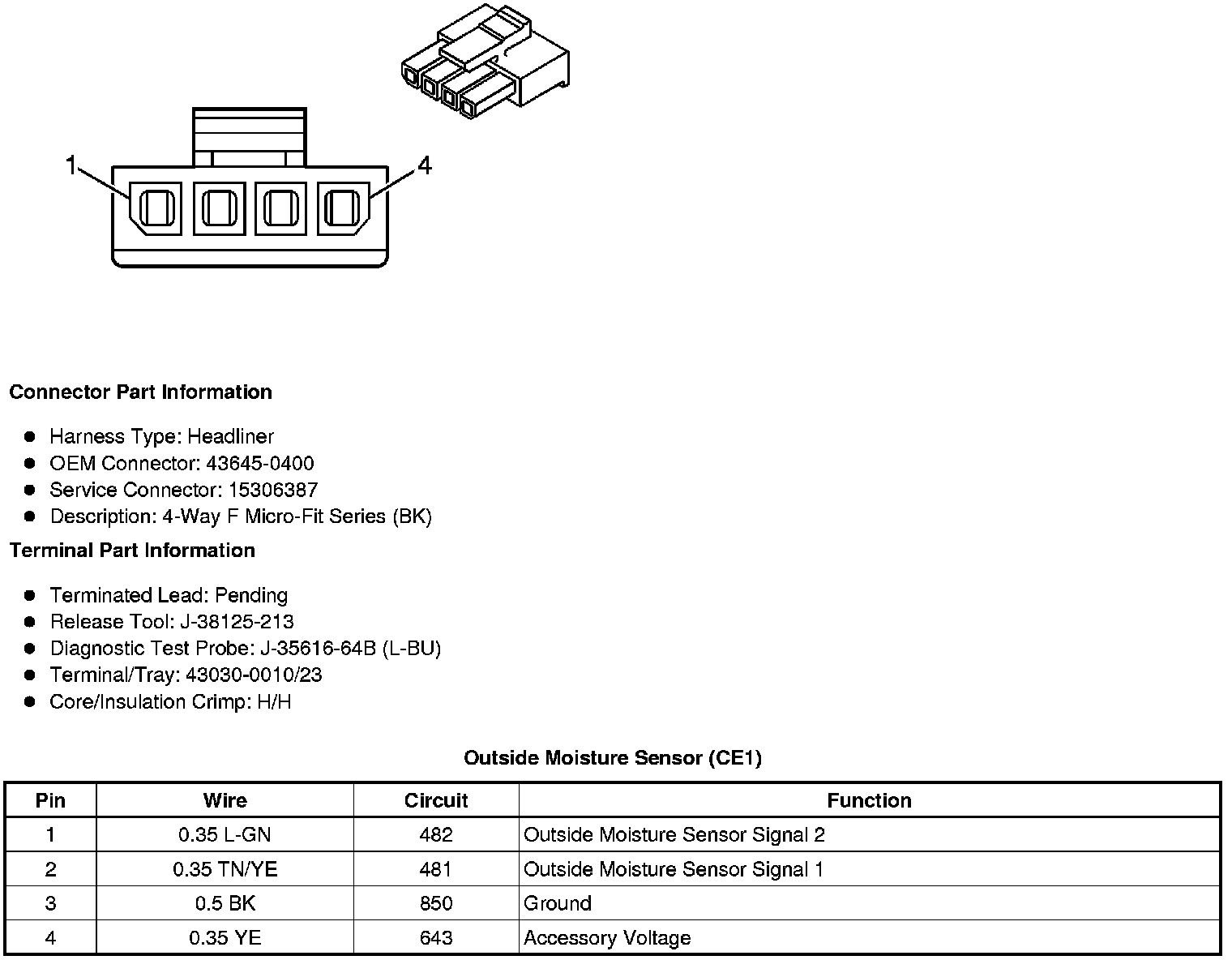

Component Connector End Views
Outside Moisture Sensor (CE1)
