Combination Switch




Component Connector End Views

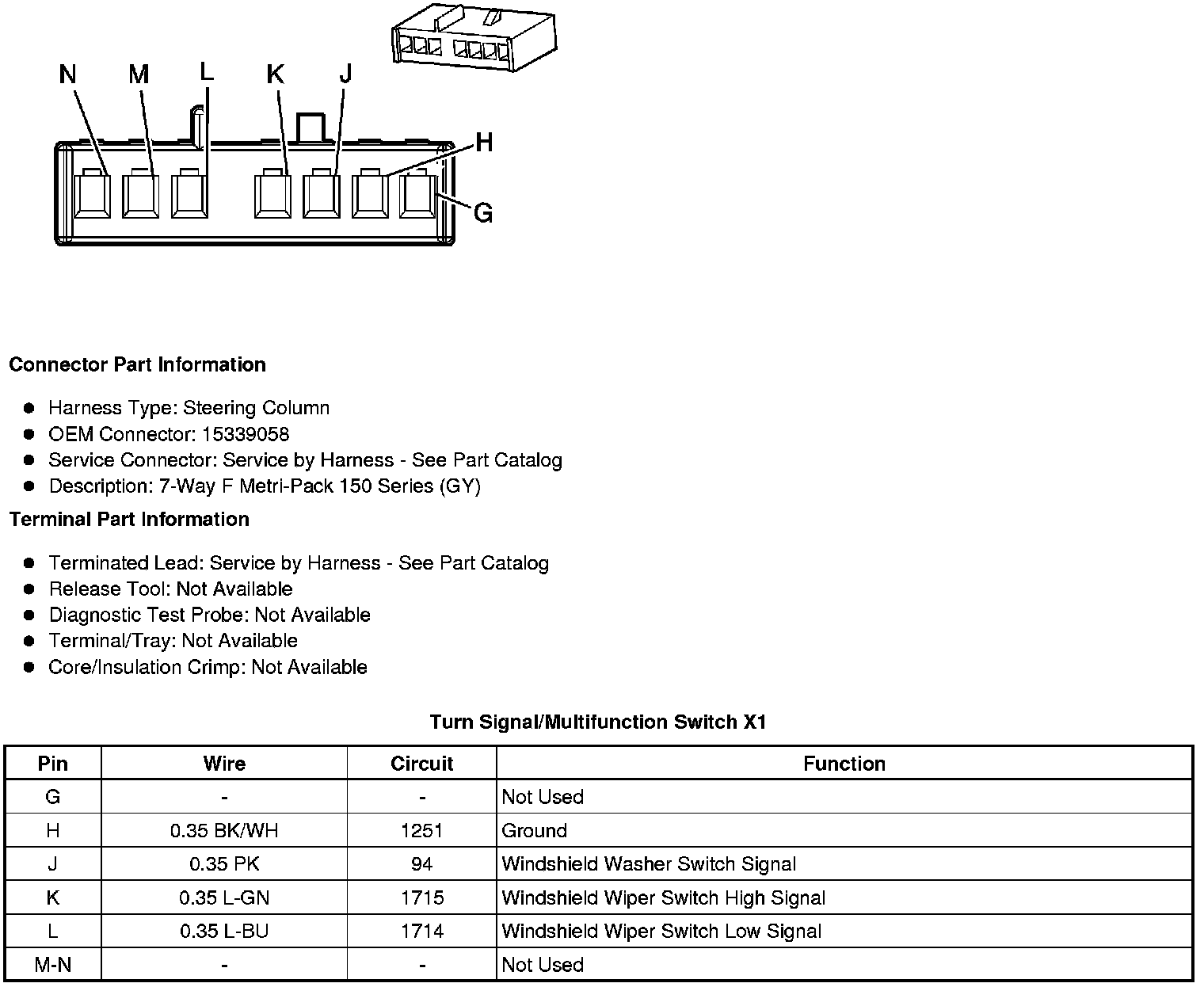

Turn Signal/Multifunction Switch X1






Turn Signal/Multifunction Switch X2






Turn Signal/Multifunction Switch X3
