Inflatable Restraint Steering Wheel Module X2
Inflatable Restraint Steering Wheel Module X2

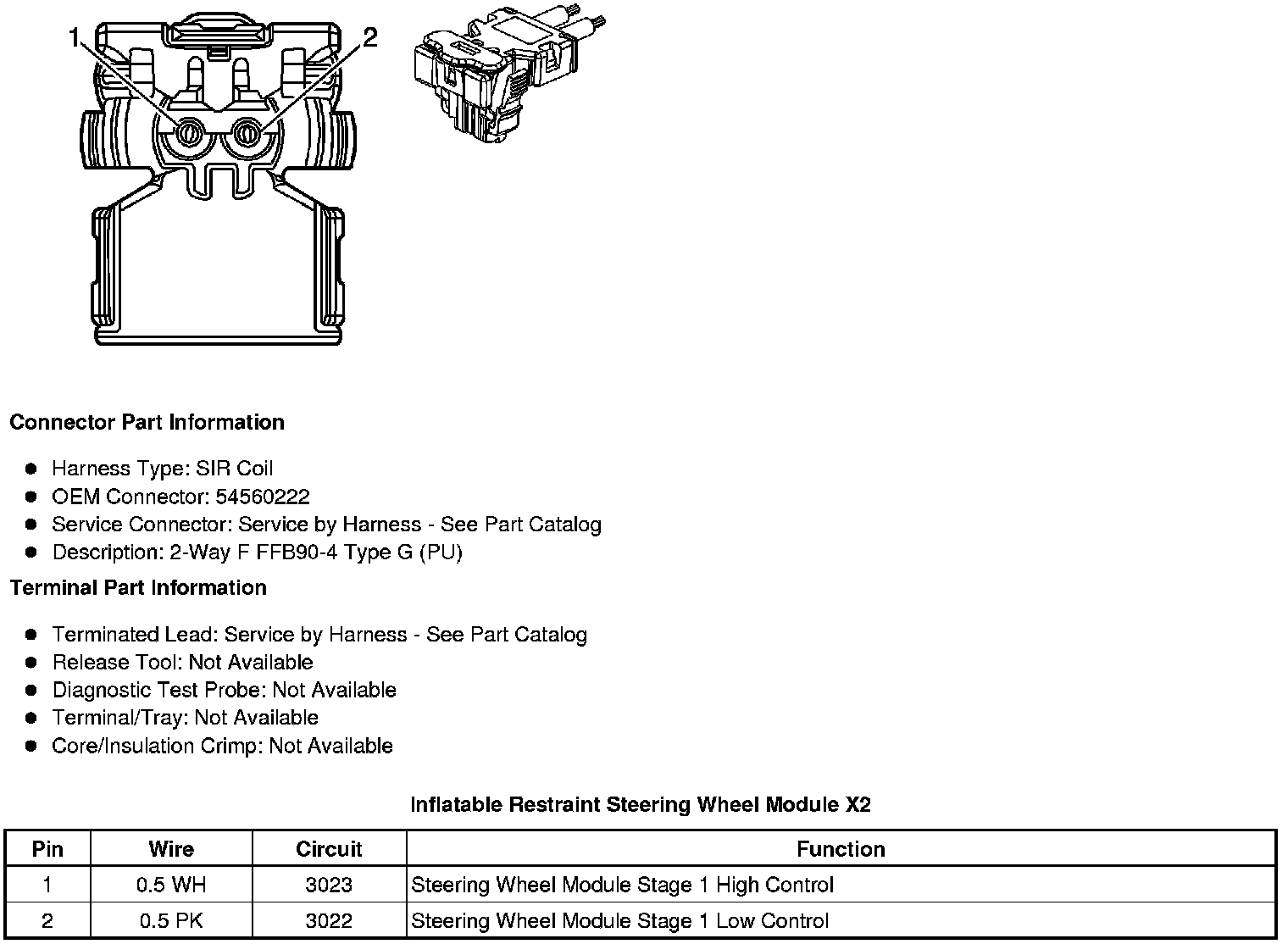

Component Connector End Views
Inflatable Restraint Steering Wheel Module X2
