Cabin Temperature Sensor / Switch
Cabin Temperature Sensor / Switch

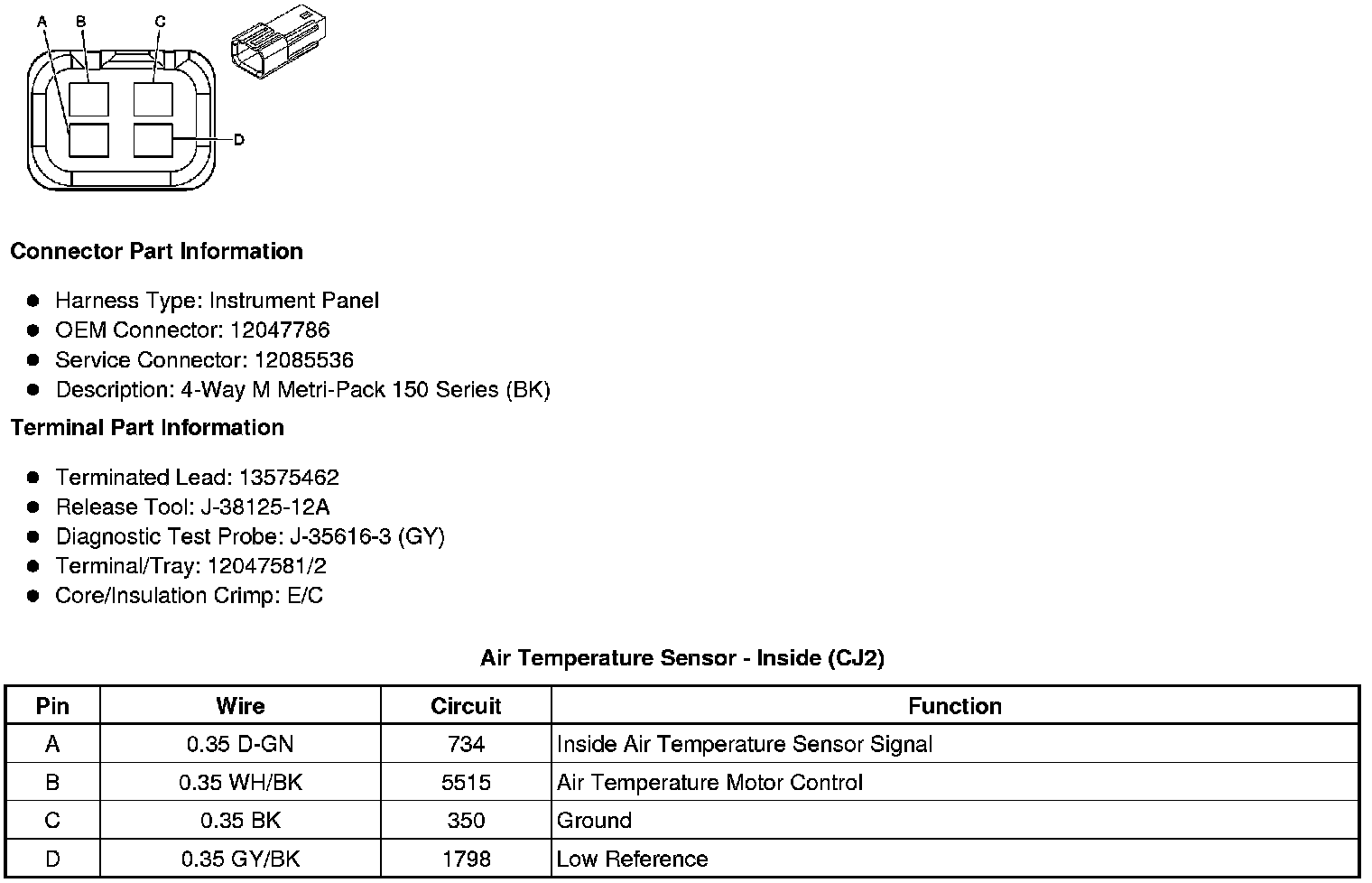

Component Connector End Views
Air Temperature Sensor - Inside (CJ2)
