Home >> Buick >> 2011 >> Lucerne V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Backup Lamp

Backup Lamp




Component Connector End Views

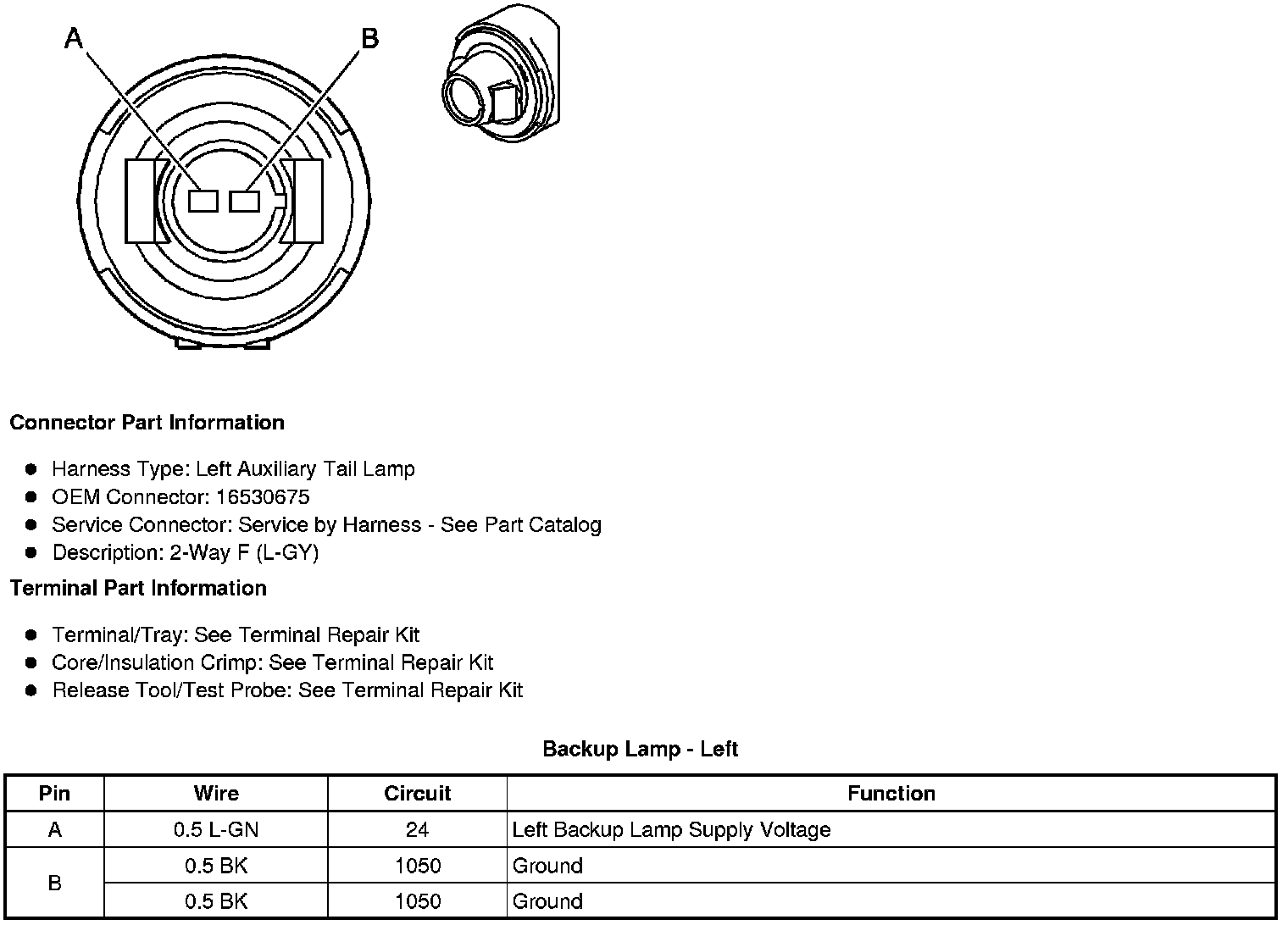

Backup Lamp - Left






Backup Lamp - Right
