Air Injection Control Valve




Component Connector End Views

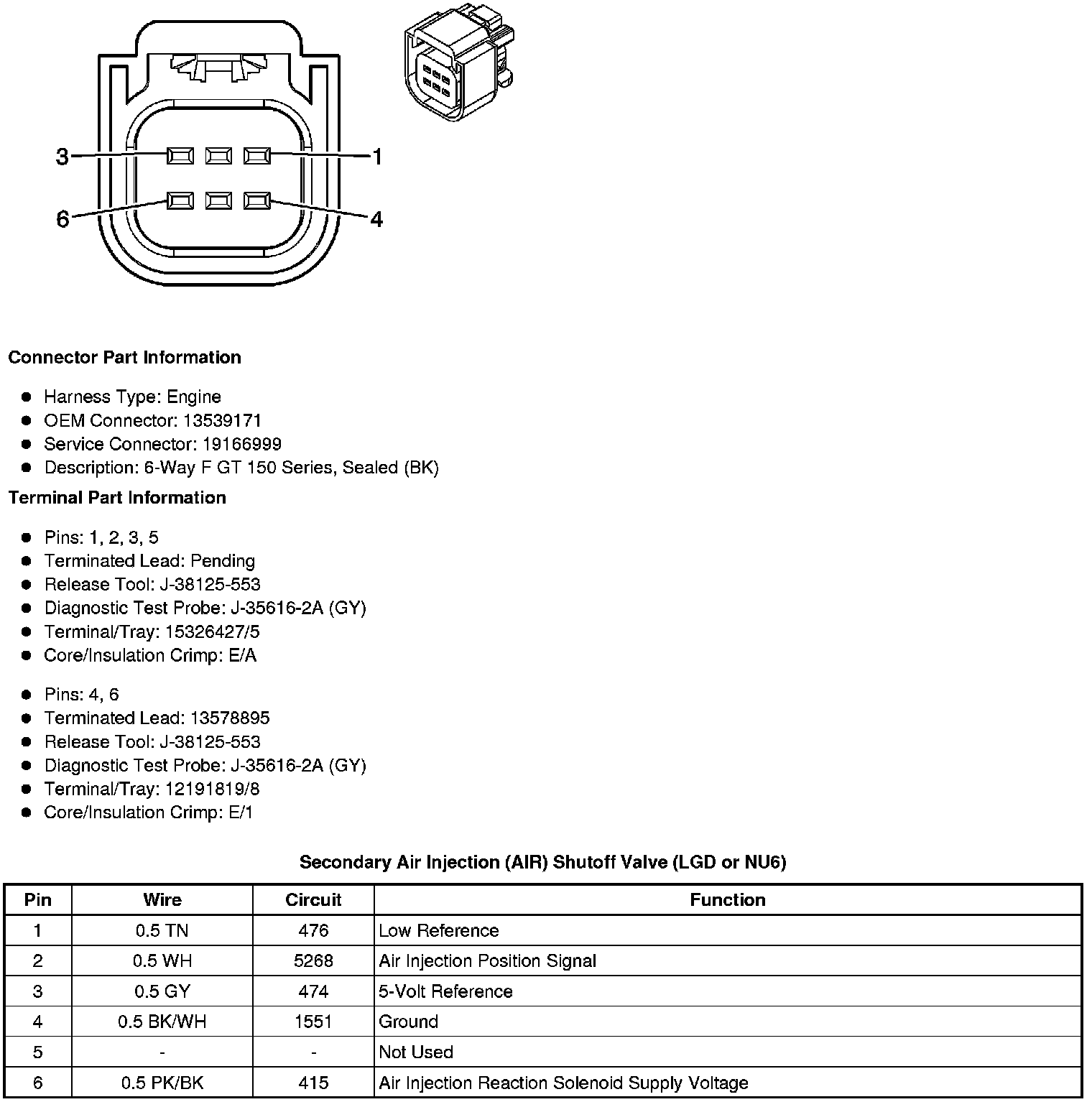

Secondary Air Injection (AIR) Shutoff Valve (LGD or NU6)
