Crankshaft Position Sensor: Diagrams




Component Connector End Views

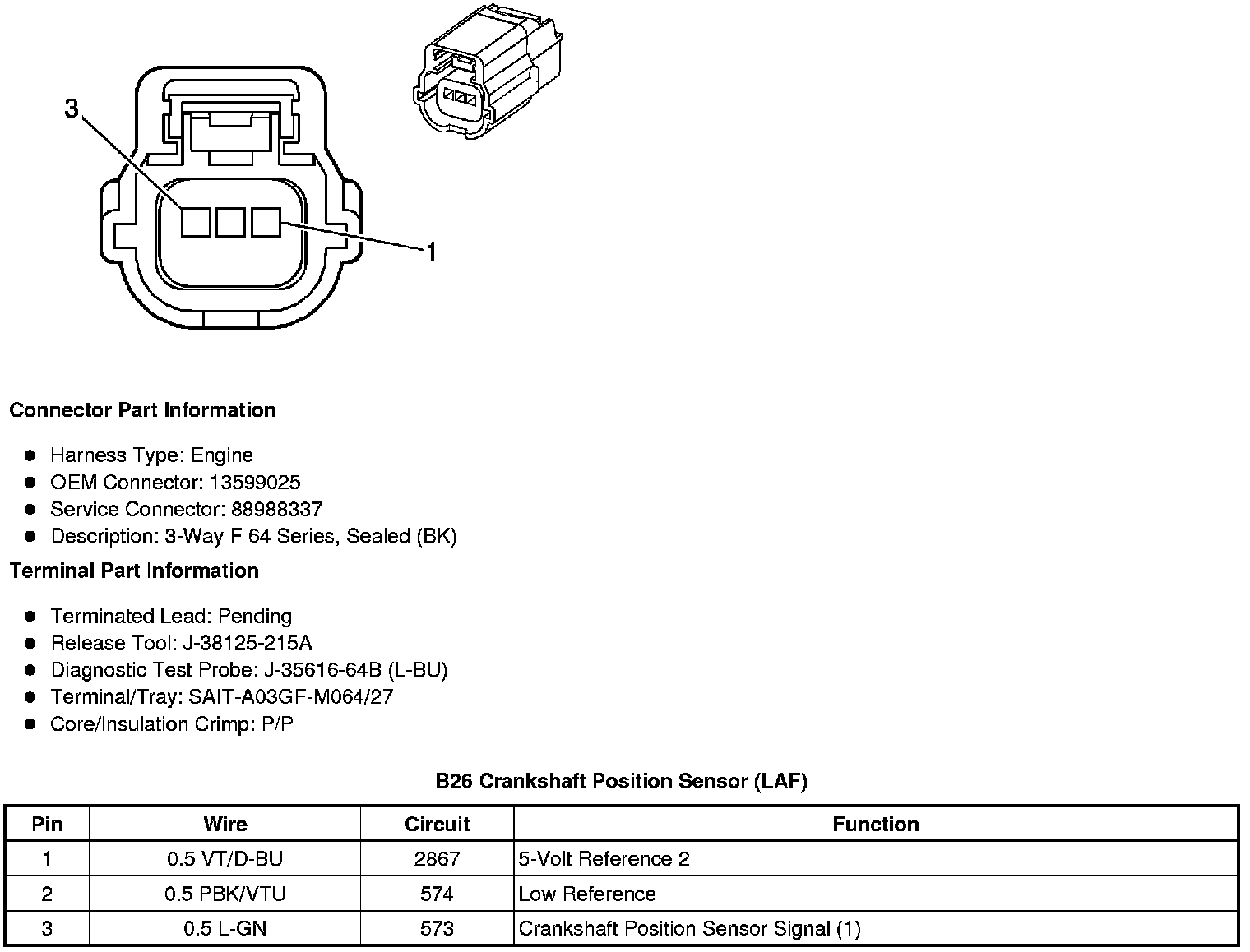

B26 Crankshaft Position Sensor (LAF)

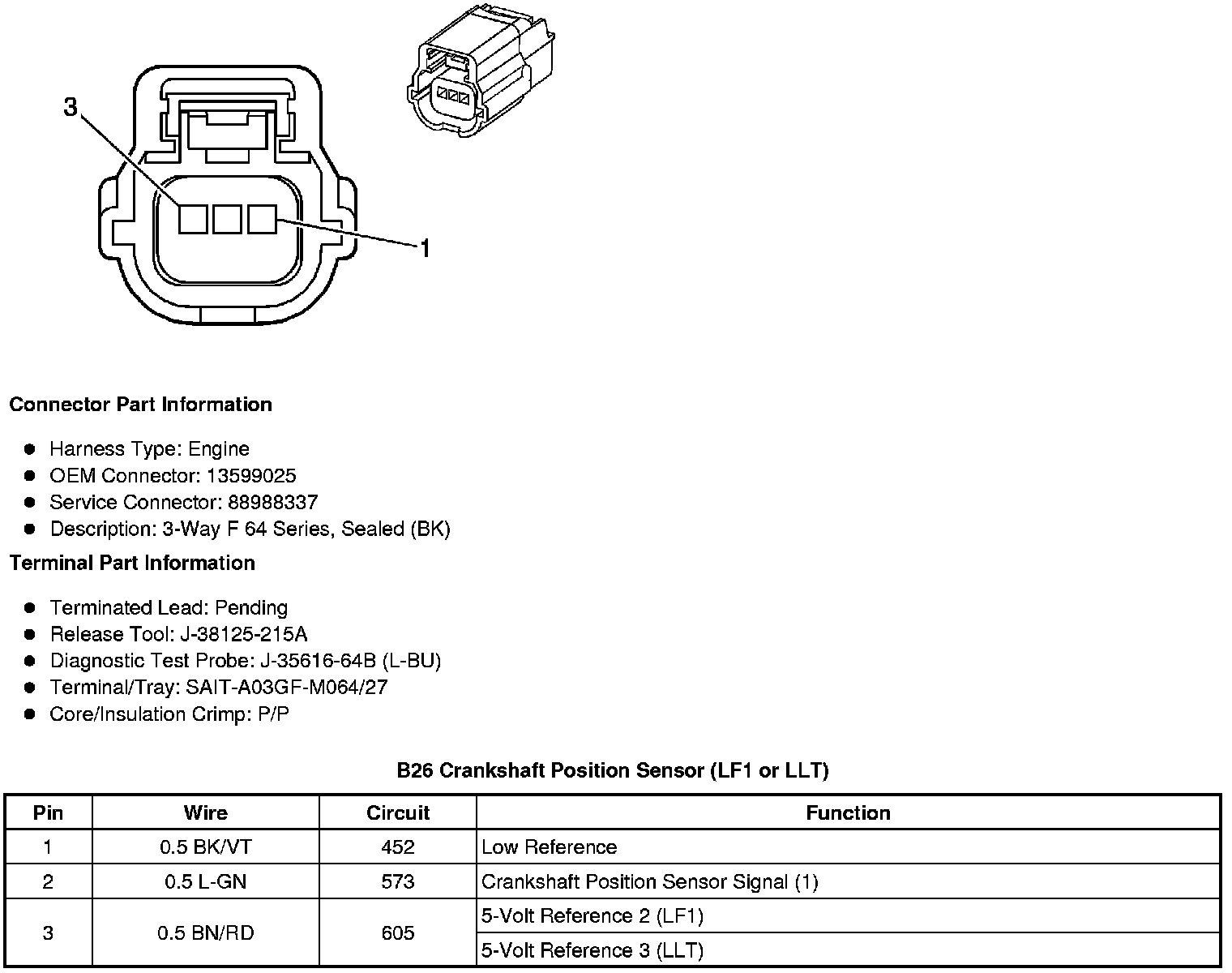

B26 Crankshaft Position Sensor (LF1 or LLT)
