Home >> Buick >> 2011 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Diagrams

Headlamp Alignment Control Module: Diagrams

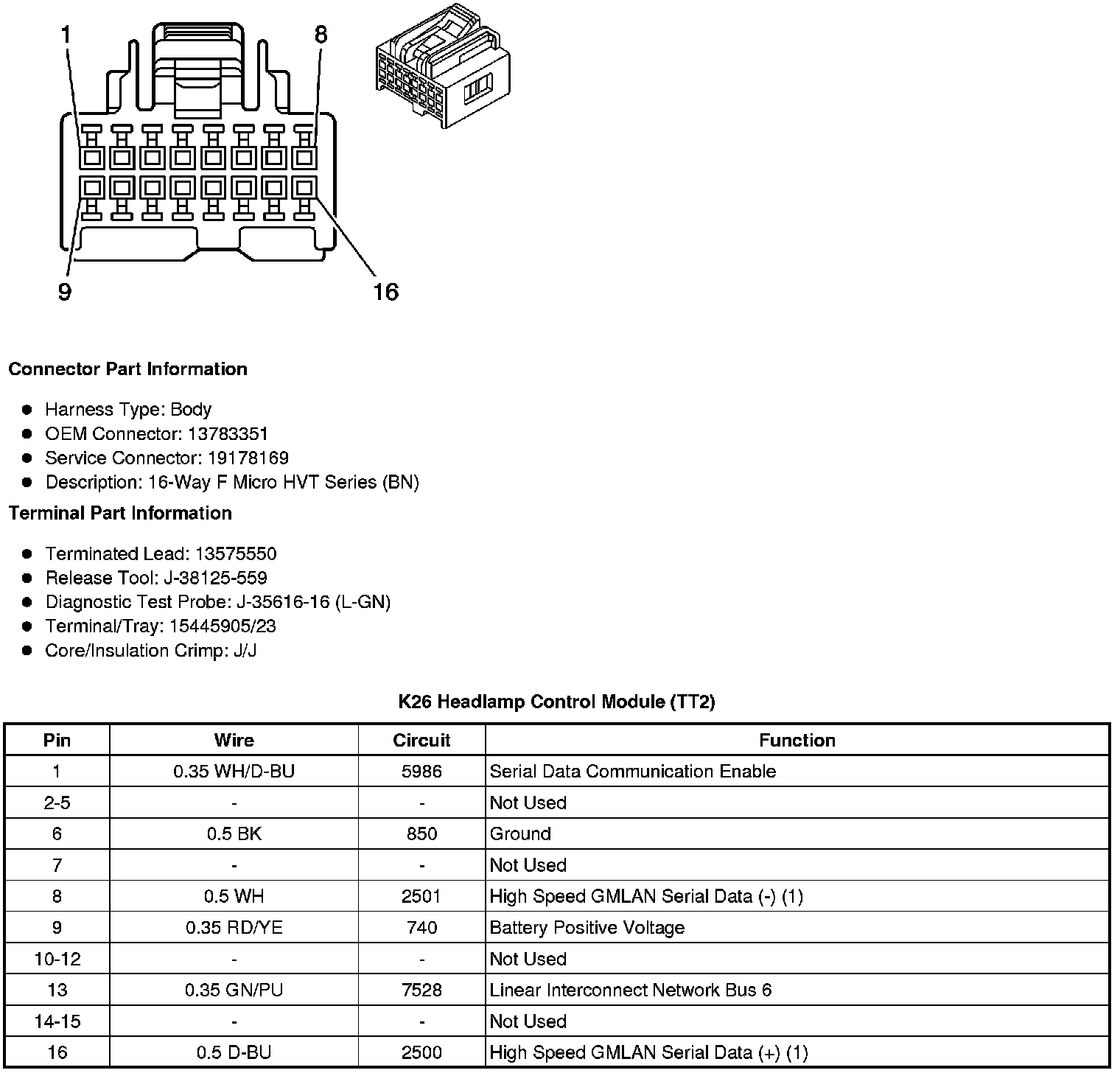

Component Connector End Views

K26 Headlamp Control Module (TT2)





K26 Headlamp Control Module (TT2)
