Home >> Buick >> 2011 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Memory Positioning Systems >> Memory Positioning Switch >> Diagrams

Memory Positioning Switch: Diagrams

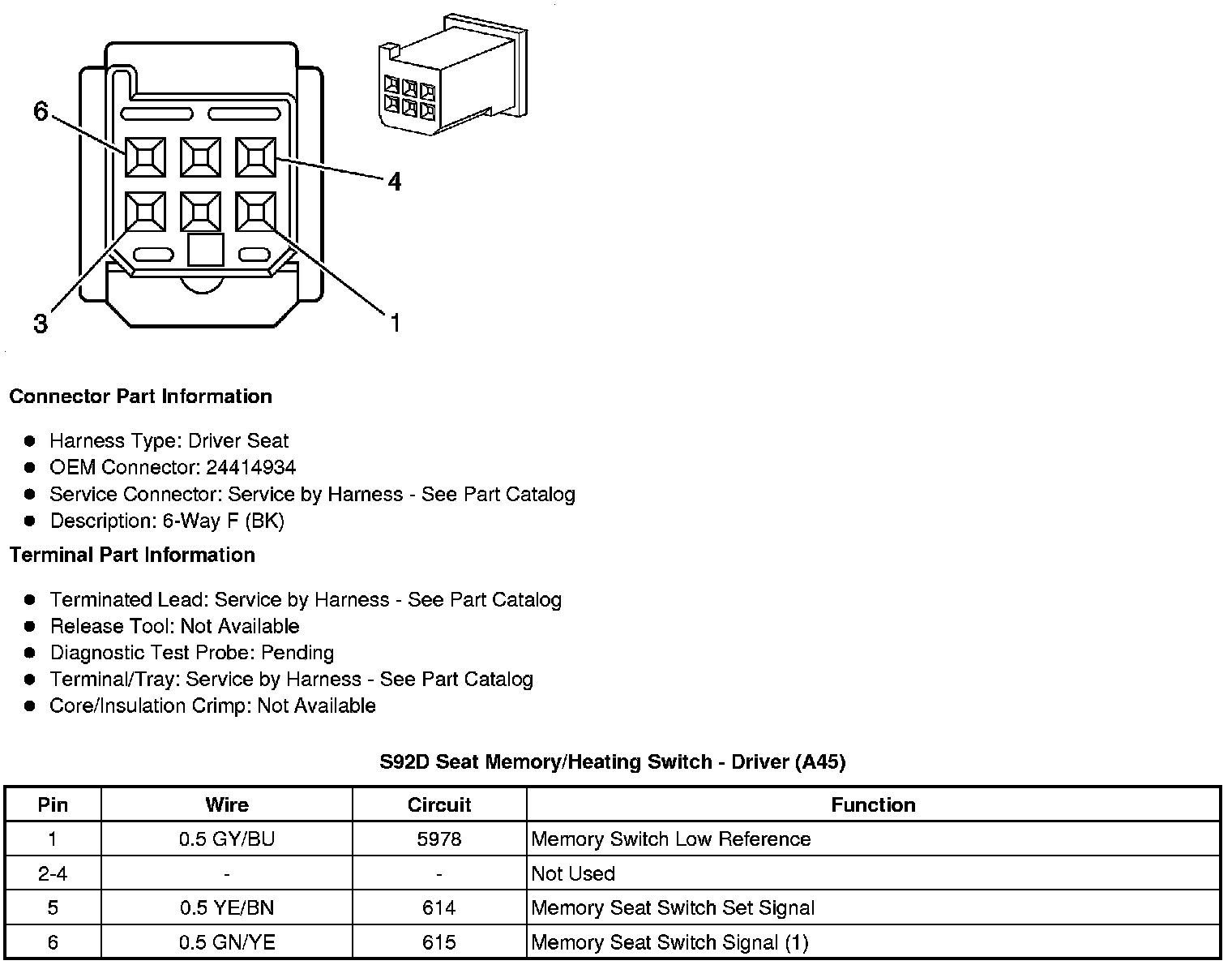

Component Connector End Views

S92D Seat Memory/Heating Switch - Driver (A45)
