Home
>>
Buick
>>
2011
>>
LaCrosse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Switch
Wiper Switch

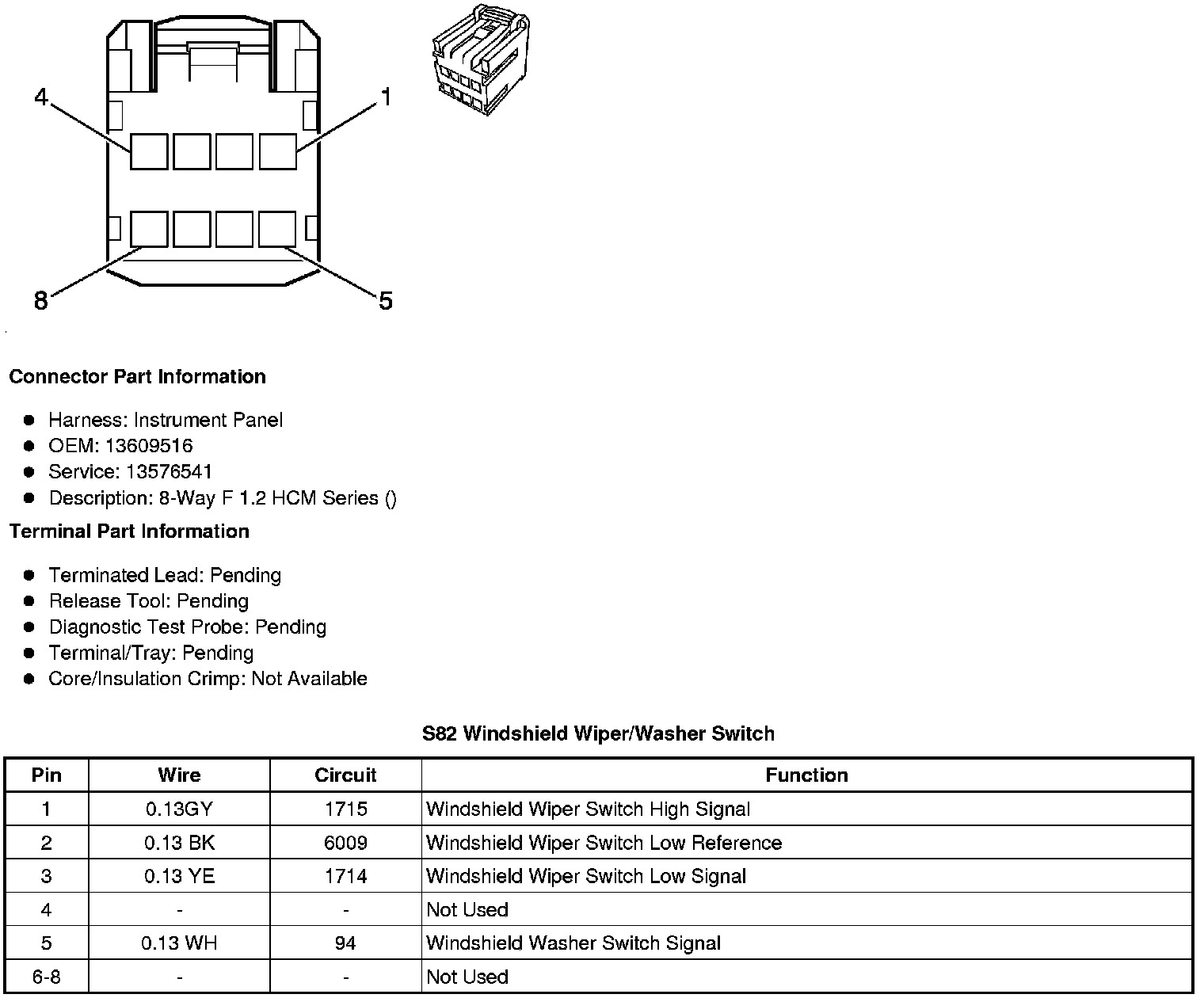

Component Connector End Views
S82 Windshield Wiper/Washer Switch
